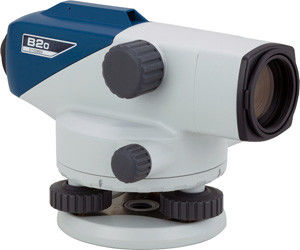

New Brand Sokkia Auto Level B20 high quality and good price

Large Image : New Brand Sokkia Auto Level B20 high quality and good price

Product Details:

Place of Origin:	China
Brand Name:	Sokkia
Certification:	CE
Model Number:	B20

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	USD400-USD450
Packaging Details:	1 pc auto level in one color box and 4 pc auto level in one carton
Payment Terms:	T/T, Western Union
Supply Ability:	10000 per pc

Contact Now

Detailed Product Description

Magnifications:	32X	Compensation:	Rapid, Accurate, And Stable Automatic Compensation
Focus:	Ultra-Short 20cm (7.9 In.) Focusing	Dependability:	All-Weather Dependability
Adjust:	Clampless, Endless Fine Horizontal Adjustments

New Brand Sokkia Auto Level B20 New Brand

New Brand Sokkia Auto Level B20 high quality and good price

AT-Bseries SPECIFICATIONS

AT-Bseries SPECIFICATIONS		B20				B30A			B40A
Telescope
Length			215mm (8.46 in.)
Magnification			32X		28X			24X
Objective Aperture			42mm (1.65 in.)		36mm (1.42 in.)			32mm (1.26 in.)
Resolving Power			3″		3.5″			4″
Field of View (at 100m/328ft.)			1°20′ (2.3m / 7.5ft.)		1°25′ (2.5m / 8.2ft.)
Minimum Focus			0.2m (7.9 in.) from end of telescope 0.3m (1ft.) from instrument center
Image			Erect
Stadia Constant			0
Stadia Ratio			100
Accuracy (1km double run leveling)
Without Micrometer		0.7mm (0.03 in.)			1.5mm (0.06 in.)			2.0mm (0.08 in.)
With Micrometer		0.5mm (0.02 in.)			n/a
Compensator
Type		Pendulum compensator with magnetic damping system
Setting Accuracy		0.3″			0.5″
Working Range		±15′
Circular level
Sensitivity		10′ / 2mm
Horizontal circle
Diameter				103mm (4.1 in.)
Minimum Division				1°/ 1gon
General
Water Resistance				IPX6 (IEC 60529:2001)
Operating Temperature				-20℃ to +50℃ (-4°F to +122°F)
Size	Width			130mm (5.12 in.)
	Length			215mm (8.46 in.)
	Height			140mm (5.51 in.)			135mm (5.31 in.)
Weight				1.85kg (4.1 lbs.)			1.7kg (3.7 lbs.)
