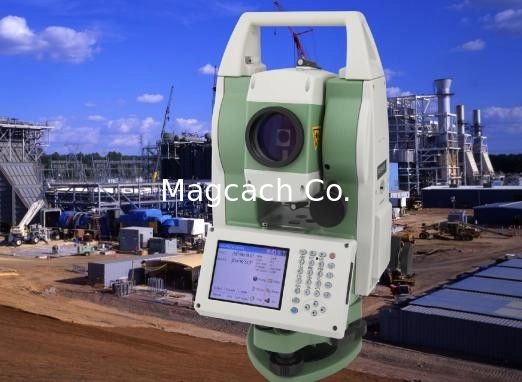

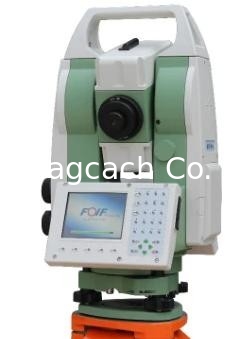

FOIF Total Station RTS010A Robotic Total Station Geophysical Survey Prism Reflective Total Station
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Magnification: | 30X | Field Of View: | 1°30′ |
|---|---|---|---|
| Resolution Ratio: | 3" | Measuring Method: | Absolute Coding |
| Detection Method: | Diameter | Angular Surveying Accuracy: | 1" |
| Least Display: | 0.1 " | Non-Prism Accuracy: | 2mm+2³10-6²d |
| Reflector Plate Accuracy: | 2mm+2³10-6²d | Prism Accuracy: | 1mm+1³10-6²d |
| Reflectorless Measure Distance: | 1000m |
FOIF Total Station RTS010A Robotic Total Station Geophysical Survey Prism Reflective Total Station
Product Description
FOIF RTS010A surveying robotic system, it has efficient motor driver, ATR automatic target aiming function.This equipment offers the best solution for the deformation monitoring, section survey, etc.
Product features:"ATR automatic target aiming.Servo motor driver;"
High performance CPU,VGA color touch screen;
Newest WINCE7.0 operating system;
| Telescope | |
| Field of view | 1°30' |
| Minimum focus | 1.0m |
| Image | Erect |
| Magnification | 30x |
| Resolution ratio | 3" |
| Angle Measurement | |
| Measuring method | absolute coding |
| Detection Method | diameter |
| angular surveying accuracy | 1" |
| Least Display | 0.1 " |
| Distance measurement | |
| Non-prism accuracy | 2mm+2³10-6²D |
| reflector plate accuracy | 2mm+2³10-6²D |
| Prism accuracy | 1mm+1³10-6²D |
| Reflectorless measure distance | 1000m |
| Relfector plate distance | 1200m |
| Prism measurement distance | 5000m |
| Accurate measurement time | <0.7s |
| Compensator | |
| Compensator type | double axis |
| Compensate range | ≥±3' |
| Spirit level | |
| bubble tube spirit level | 30″/2mm |
| round spirit level | 8′/2mm |
| laser centralizer | |
| Laser type | 635nm semiconductor laser |
| Accuracy | ±1mm/1.5m |
| Facula | ≤2.5mm/0.5~2m |
| ATR | |
| Working range | 5~700m |
| Position accuracy | ±1mm@100m |
| position time | 3~4s |
| Slow motlon screw | |
| Slow motlon screw | 1 horizonal,1 vertical |
| Motor driver | |
| Servo position accuracy (standard deviation) | 3" |
| Largest rotational speed | 35°/s |
| Low speed micro-rotating control minimum | 1" |
| Display type | |
| Display type | 3.5 inch 320³240 touch screen |
| keyboard | back lighting + auto sensitization |
| Power | |
| Battery | 7.4V 5.8Ah Li battery |
| Working time | 5~8h |
