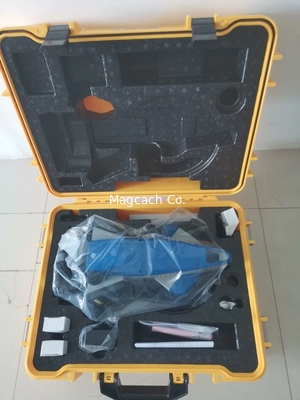

China Brand Stonex R3 Dual Axis Total Station Reflectorless Distance 800m Total Station
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Reflectorless Distace: | 800m | Bluetooth: | With Bluetooth |
|---|
China Brand Stonex R3 Dual Axis Total Station Reflectorless Distance 800m Total Station
Product Description
Feature:
Long measuring distance (800 non-prism)
Using digital phase laser ranging technology, high-precision measurement of long-distance targets can be achieved in prism free mode, ranging up to 800 meters; single prism 3500 meters.
The ranging speed is fast
Equipped with a new type of fast digital ranging lens, and the application of new ranging technology, a single fine measurement of 0.8 seconds, tracking of 0.3 seconds, effectively guarantee the measurement efficiency.
1 Key measurement
When the instrument measures, the light does not need to leave the telescope, and the key can complete the measurement.
1 key measurement has little influence on measurement operation, which can ensure the accuracy of measurement.
Dual axis compensation
The fully automatic two axis compensator, combined with the visual display of electronic graphics blister, can achieve accurate leveling and ensure the accuracy of horizontal position
| Parameter: | ||
|
Item
|
describe | |
| Telescope | imaging | positive |
| Magnification | 30× | |
| resolving power | 160mm | |
| Angle of field of view | 2.8″ | |
| Tube length | 1°30' | |
| Effective aperture | 44mm | |
| Measure angle | Angle measuring mode | Absolute coding system |
| accuracy | 2"grade | |
| Minimum display reading | 1″ | |
| Display unit | 360° / 400 gon / 6400 mil | |
| Measure distance | Ranging light source | 650~690nm |
| Measuring time | 0.5s(quick measure) | |
| Spot diameter | 12mm×24mm(50m) | |
| Laser pointing | Switchable laser pointing | |
| Laser grade | Class 3 | |
| Non-prism | 800 m | |
| Single prism | 3500 m | |
| Prism accuracy | 2mm+2×10 -6×D | |
| Non-prism accuracy | 3mm+2×10-6 ×D | |
| Prism Constant correction | -99.9mm +99.9mm | |
| Minimum distance reading | Precision measurement mode :1 mm , tracking mode:10 mm | |
| Temperature setting range | −40ºC+60ºC | |
| temperature range | 1ºC | |
| Atmospheric pressure correction | 500 hPa-1500 hPa | |
| atmospheric pressure | 1hPa | |
| Leveling | Long level | 30″/ 2 mm |
| Circular level | 8′ / 2 mm | |
| Laser plummet | wavelength | 635 nm |
| Laser grade | Class 2 | |
| accuracy | ±1.5 mm / 1.5m | |
| Spot size / energy | Can be adjust | |
| Maximum output power | 0.7 ~1.0 mW, can be switched and adjusted by software | |
| Compensation | Compensation mode | Dual Compensation |
| Compensation method | Graphical | |
| Scope of work | ±4′ | |
| resolving power | 1″ | |
| battery | Power Supply | lithium battery |
| Voltage | DC 7.4v | |
| working hours | It takes about 20 hours (25 ºC, measuring angle + ranging, interval 30s), and it only takes more than 24 hours to measure the angle | |
| Display / key | type | 2.8 inch color screen |
| data transmission | ||
| lighting | LCD backlight | |
| Key | All numeric keyboard | |
| Display / key | Interface type | USB port |
| data transmission | ||
| Bluetooth transmission | support | |
| Environmental indicators | working temperature | -20ºC ~ 50ºC |
| Storage temperature | -40ºC ~ 60ºC | |
| Waterproof and dustproof | IP 54 |
