Precision and lightness
Easy to carry and safekeeping
Solid support rod
Return to zero design and return to zero button protection
Double return zero design and protection of return zero button
High wear-resistant PU tread with impact-resistant ABS tires
Maximum measured distance:9999.9 meters or 9999.11 feet
Wheel diameter: 320 mm (12 in.)
Wheel radius: 160 mm (6 inches)
Extension length: 980 mm (38 inches)
Folding length: 530 mm (21 inches)

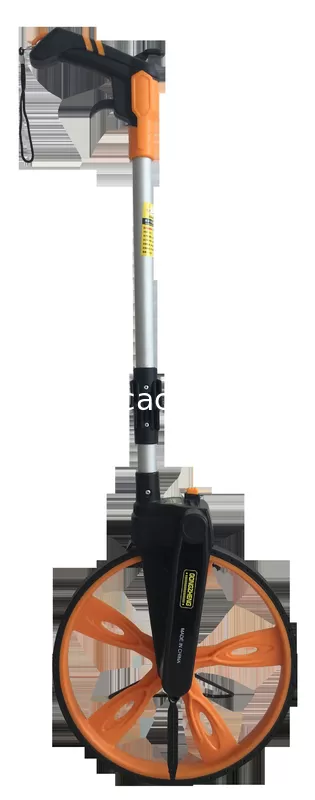

The mechanical measuring wheel is designed and manufactured for users to measure their outdoor distance. It is used for various ground conditions, including slopes, grasslands, rugged construction sites and so on.
Professional surveying and mapping operating , road engineering, pipeline laying engineering, wire and cable engineering, farmland construction management.
How to measure
1.Measuring method from wall to wall:
Put the range wheel on the ground and let the rear wheel lean against the back wall. Start moving in a straight line to the next wall. When the current wheel touches the front wall, record the measurement data on the display. The correct reading data must be added to the length of the wheel diameter.
2.Measuring from the wall to the next fixed point:
Place the range wheel on the ground and let the rear wheel lean against the back wall. Start moving in a straight line to the next point, and mark the end point on the bottom of the stop needle. Record the measured readings on the table. The correct reading must be made by adding the radius of the wheel.
3.Point-to-point measurement method:
Put the Measuring wheel at the starting point and start with the lowest point of the vertical needle. Start at the lowest point marked by the next vertical pin. Record the readings on the table below. This reading is the final measurement between two points.
