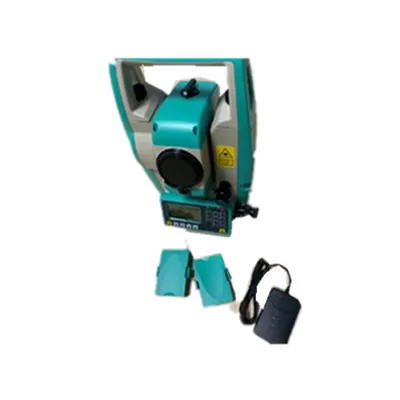

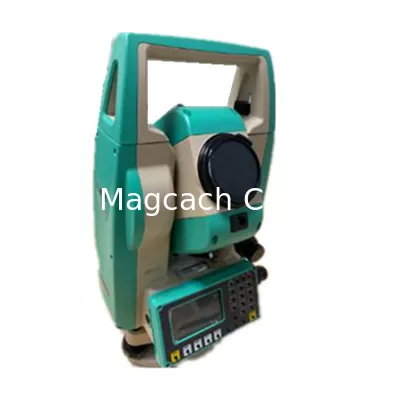

RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments

China RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments supplier
RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments supplier RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments supplier RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments supplier RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments supplier

Large Image :  RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments

Product Details:

Place of Origin: China
Brand Name: Ruide
Certification: CE
Model Number: RTS822R4X

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: with Standard Import Packing Way
Payment Terms: T/T, L/C, Western Union, MoneyGram
Contact Now
Detailed Product Description
Model: RTS822R4X Accuracy: 2"
Magnication: 30X Field Of View: 1degree 30 '

RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments

RUIDE RTS-822R4 with 2" accuracy Total station for surveying instruments

TELESCOPE RTS-822R4X
Length 154mm
Objective Lens Diameter Telescope:45mm Distance meter:50mm
Magnification 30X
Image Erect
Field of View 1°30″
Resolving Power 3″
Mini.Focus 1.0m
DISTANCE MEASUREMENT
Single Prism 4000m∗1
Non-Prism 400m∗2
Accuracy - Prism Mode ±(2mm+2ppm×D)m.s.e.∗3
-Non-Prism Mode ±(3mm+2ppm×D)m.s.e.∗3
Measuring Time Fine:0.7s,Normal:0.5s
Meeteorologic Correction ATMOSense(Auto Sensing)
Prism Constant Manual Input
ANGLE MEASUREMENT
Method Absolute Ending
Detecting System H:2 sides, V: 2 sides
Miin.Reading 1″/5″
Accuracy 2″
Diameter of Circle 79mm
Vertical Angle 0° Zenith 0°/Horizontal:0°
Unit 360°/400gon/6400mil
DISPLAY
Display Unit Graphic LCD 160×90 Dots with White Backlight
No.of Unit 2 sides
Keyboard Alphanumeric Key
TILT CORRECTION
Tilt Sensor Dual Axis
Method Liquid Electric
Range ±4′
Setting Unit 1″
LEVEL SENSITIVITY
Plate Level 30″/2mm
Circular Level 8′/2mm
OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET)
Image Erect
Magnification 3X
Focusing Range 0.3m~∞
Field of View
DATA STORAGE & INTERFACE
Internal Memory >10,000 points or > 20,000 coordinates
Data Inerface RS 232/SD-card/Mini-USB
GENERAL
Guide Light No
weight&Dimension 5.4kg,340mm(H)×160mm(W)×150mm(L)
Working Temperature -20°C~+50°C
Battery Type Rechargeable Li-on Battery 3000mAh
Battery Voltage DC7.4V
Working Time 16h
