LS706III Mechanical Laser Receiver

China LS706III Mechanical Laser Receiver supplier
LS706III Mechanical Laser Receiver supplier LS706III Mechanical Laser Receiver supplier

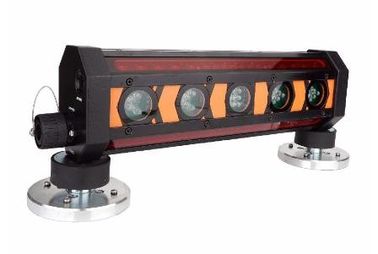

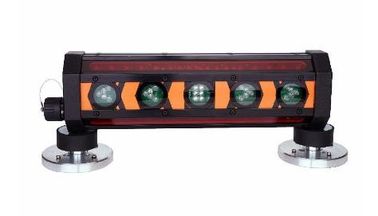

Large Image :  LS706III Mechanical Laser Receiver

Product Details:

Place of Origin: China
Brand Name: Laisai
Certification: CE
Model Number: LS706II

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: with standard packing way
Delivery Time: 3.-5 work days after the goods are paid
Payment Terms: T/T, Western Union,
Supply Ability: 1000 pc per year
Contact Now
Detailed Product Description
Range: Wide Range Detect Window Display: High Brightness LED Display
Directions: 360º All Directions Receivable

LS706II  Mechanical Laser Detector


LS706III Mechanical Laser Receiver





FEATURES


  • Wide range detect window, 360º all directions receivable
  • Able to receive laser beam of all kinds of rotary laser
  • High brightness LED display
  • Able to store data received last time
  • Low voltage power-off automatically
  • Able to be connected to the car battery with provided cable
  • Choose-able between clamp holder or magnet base
  • Optional LS707 display to extend the usage
  • Vibration-proof and rainproof





TECHNICAL DATA



Communication function



N



Location information output(Output to the controller)



N



Display



Five-level LED display



IP class



IP 66



Detecting radius



250m



Receiving angle



360°



Measuring accuracy



±3mm



Detecting window



246mm



Working temperature



-10℃～+50℃



Power supply



Built-in 6*C NI-MH battery pack





Size



376×80×149mm



Weight



3100g
