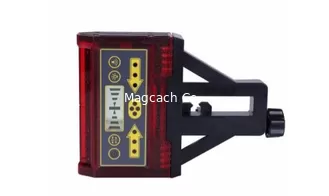

LS708 Lightweight Mechanical Laser Receiver

China LS708 Lightweight Mechanical Laser Receiver supplier
LS708 Lightweight Mechanical Laser Receiver supplier LS708 Lightweight Mechanical Laser Receiver supplier LS708 Lightweight Mechanical Laser Receiver supplier

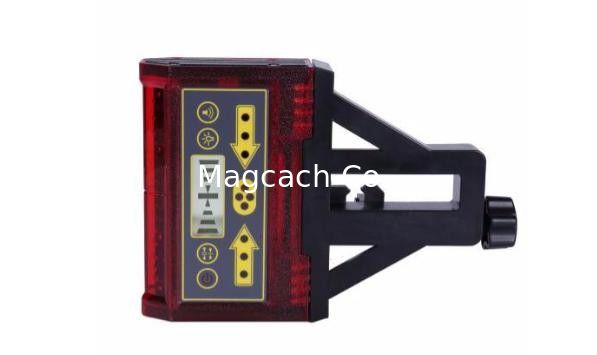

Large Image :  LS708 Lightweight Mechanical Laser Receiver

Product Details:

Place of Origin: China
Brand Name: Laisai
Certification: CE
Model Number: LS708

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: with standard packing way
Delivery Time: 3.-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 pc per year
Contact Now
Detailed Product Description
Range: Wide Range Detect Window Display: High Brightness LED Display
Directions: 360º All Directions Receivable

LS708 Mechanical Laser Detector

LS708 Lightweight Mechanical Laser Receiver





FEATURES


  • 240º angle range receivable
  • Receiving signal position LCD display
  • LED indicates on-grade information clearly
  • Sound indicates the exact on-grade position
  • Low voltage power-off automatically
  • Vibration-proof, shockproof and rainproof
  • Additional fixing clamp holder







TECHNICAL DATA



Communication function



N



Location information output(Output to the controller)



N



Display



LED and LCD display



IP class



IP 66



Detecting radius



150m





Receiving angle



240°



Measuring accuracy



±2mm



Detecting window



120mm



Working temperature



-10℃～+50℃



Power supply



4*AA battery



Size



170*115*42mm



Weight



0.7kg
