Collimator F550-3

Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

Collimator F550-3

China Collimator F550-3 supplier
Collimator F550-3 supplier Collimator F550-3 supplier Collimator F550-3 supplier

Large Image :  Collimator F550-3

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: F550-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with standard packing way
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000000 per pc
Contact Now
Detailed Product Description

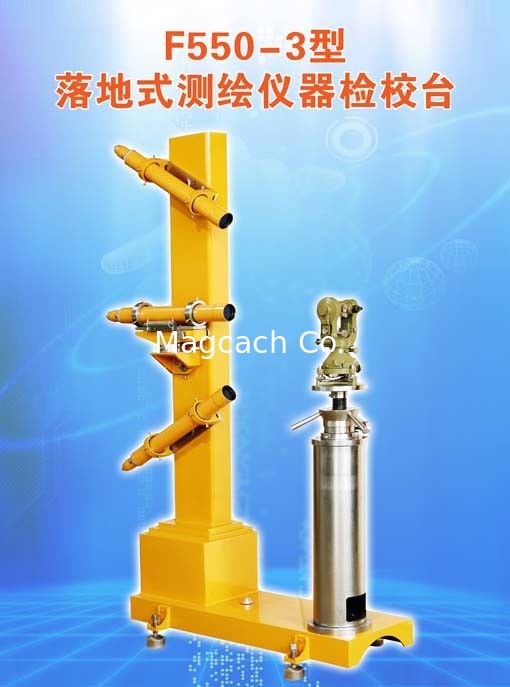

Collimator F550-3


Collimator F550-3


Three parallel light pipe (Three parallel light pipe:

Vertical shaft angle, Horizontal angle, Angle of depression)

○The length of parallel light pipe barrel : 565mm

○Effective aperture: 55mm

○Focal length: 550mm

○Precision( Reticle lattice value): 20”

○Elevating stage of the maximum working range(including optical path

aperture): 30cm

○Magnification ratio: 5.7~7 times

○Angle of view: 10° 20′

○Resolution: 3″

○Calibration table size:198high×110length×40wide(cm)

○Total weight: 240kg Visual range: 15~30cm

○Level sensitivity

○Base circular bubble leveling instrument: △≤8″/2mm

○Collimating micro actuator long leveling instrument: △≤10′

○Power supply voltage: 3.4~4.2V 2.1W

○Switching power supply: I=10A

○Lighting: Cold light source(The intensity of trimming)
