Dji Mavic 2 Pro Drone/UAV Pantom

China Dji  Mavic 2 Pro  Drone/UAV Pantom supplier
Dji  Mavic 2 Pro  Drone/UAV Pantom supplier Dji  Mavic 2 Pro  Drone/UAV Pantom supplier Dji  Mavic 2 Pro  Drone/UAV Pantom supplier Dji  Mavic 2 Pro  Drone/UAV Pantom supplier

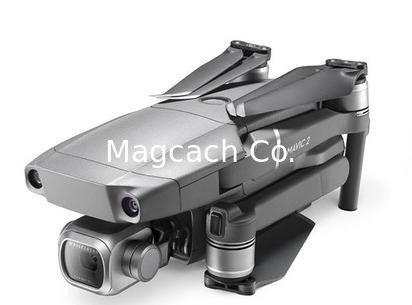

Large Image :  Dji Mavic 2 Pro Drone/UAV Pantom

Product Details:

Place of Origin: China
Brand Name: Dji
Certification: CE
Model Number: Dji Mavic 2 Pro UAV

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: With standard exporting packing way
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 per year
Contact Now
Detailed Product Description
Model: Dji Mavic 2 Pro UAV Trademark: Dji
Weight: 1 KG Original: China

Dji Mavic 2 Pro UAV



Dji  Mavic 2 Pro  Drone/UAV Pantom

Specification

Aircraft
The weight(with out accessories) 905 g
The biggest weight 1100 g
Size
Folder 214×91×84mm
Unfolder 322×242×84mm
Unfolder +searchlight 322×242×114mm
Unfolder +Night lights 322×242×101mm
Unfolder +megaphone 322×242×140mm
Diagonal wheelbase 354 mm
Maximum rate of rise

5 m/s (s mode [1])

4 m/s (P mode)

4 m/s (s mode with accessories [1])

4 m/s (P mode with accessories)

Maximum rate of descent

3 m/s (s mode [1])

3 m/s (P mode)

Maximum horizontal speed

72km/h (S mode, calm environment near sea level)

50km/h (P mode, calm environment near sea level)

Maximum flight altitude 6000 meters
Maximum flight time 31 minutes (25km/h in a calm environment with constant speed)
Maximum hover time

29 mins (calm environment)

27 mins (turn on night light) 28 mins (turn off night light)

22 minutes (searchlight on) 26 minutes (searchlight off)

25 minutes (turn on the shoutout) 26 minutes (turn off the shoutout)

Maximum resistance to wind speed Level 5 wind
Maximum tilt Angle

35° (S mode, with remote control)

25° (P mode)

Maximum angular velocity of rotation

200°/s (s mode)

100°/s (P mode)

Operating temperature -10°C -40°C
GNSS GPS+GLONASS
Hover precision
Vertical

± 0.1m (when visual positioning works normally)



± 0.5m (when GPS is working normally)

Horizontal

± 0.3m (when visual positioning works normally)



± 1.5m (when GPS is working normally)

Working frequency

·

2.400-2.4835 GHz;
5.725-5.850 GHz



Transmitted power (EIRP)

2.400 - 2.4835 GHz
FCC:≤26 dBm
CE:≤20 dBm
SRRC:≤20 dBm
MIC:≤20 dBm
5.725 - 5.850 GHz
FCC:≤26 dBm
CE:≤14 dBm
SRRC:≤26 dBm



Airborne memory

24GB



Dual light infrared camera

Angle of view: about 85°

35 mm format equivalent focal length: 24 mm

Aperture: f / 2.8

For focus: 0.5 m to infinity

The sensor Uncooled vanadium oxide microbolometer
The lens Angle of view: 57°(HFOV) aperture: f/1.1
Sensor resolution

160×120



pixel spacing

12 μm



Wavelength range

8-14 μm



Photo size [2]

640×480(4:3);640×360(16:9)



Photo shooting mode

A single shot



Multiple BURST shots: 3/5/7



Timed shooting: 2/3/5/7/10/15/20/30/60 s

Video resolution

640×360 @8.7fps



Temperature measurement accuracy

High gain mode: up to 5% (typical value)



Low gain mode: up to 10% (typical value)

Scene dynamic range

High gain mode: -10° to +140°C



Low gain mode: -10° to +400°C

Image format

JPEG



Video format

MP4,MOV (MPEG-4 AVC/H.264)




Clud Desk
Structural design scope

Pitch: -135°- +45°



Translation: -100°- +100°

Rotatable range

Pitch: -90°- +30°



Translation: -75°- +75°

A stable system 3 axis mechanical head (pitch, roll, translation)
Maximum control speed

120°/s



Angular jitter

±0.005°




Dual-light visible-light camera
Image sensor 1/2.3-inch CMOS; 12 million effective pixels
The lens





5/5000

ISO range

Video: 100-3200 (automatic)



Photo: 100-1600 (automatic)

Maximum photo size

4056×3040(4:3);4056×2280(16:9)



Photo shooting mode

A single shot



Multiple BURST shots: 3/5/7



Timed shooting: 2/3/5/7/10/15/20/30/60 s

Video resolution

4K Ultra HD:3840×2160 30p
2.7K:2688×1512 30p
FHD:1920×1080 30p



Video maximum code stream

100 Mbps



Image format

JPEG



Video format

MP4,MOV (MPEG-4 AVC/H.264)



Perception system
Perceptual system type Omni-directional sensing system [3]
The Place ahead

Accurate range: 0.5 to 20 m



Detection range: 20 to 40 m



Effective obstacle avoidance speed: flight speed ≤ 14m/s



Angle of view (FOV) : 40° horizontal, 70° vertical

The Place Back

Accurate range: 0.5 to 16 m

Detection range: 16 to 32 m

Effective obstacle avoidance speed: flight speed ≤ 12m/s

Angle of view (FOV) : 60° horizontal, 77° vertical



Up

Effective height measurement: 0.5-11m



Detection range: 11 to 22 m

Down

Effective height measurement: 0.5-11m



Detection range: 11 to 22 m

The left and right

Detection range: 0.5 to 10 m



Effective obstacle avoidance speed: flight speed ≤ 8m/s



Angle of view (FOV) : 80° horizontal, 65° vertical

6/5000

Efficient use environment

Front, rear, left and right:



The surface has rich texture and sufficient lighting conditions



(>15 lux, normal indoor fluorescent lamp irradiation environment)



Top: the surface is a diffuse material with a reflectance of 20% >



(walls, trees, people, etc.)



Below: the ground is rich in texture and light



(> 15 lux, normal indoor fluorescent lamp irradiation environment) the surface is a diffuse reflection material and the reflectivity of > is 20%



(walls, trees, people, etc.)

Zoom camera
Image sensor 1/2.3-inch CMOS; 12 million effective pixels
The lens

Visual Angle: about 83° (24mm); About 48° (48mm)



Equivalent focal length: 24-48 mm



Aperture: f/2.8 (24mm) -f/3.8 (48mm)



For focus: 0.5 m to infinity

ISO range

Video:



100-3200.



Photo:



100-1600 (automatic)



100-3200 (manual)

The shutter speed Electronic shutter: 8-1/8000 s
Maximum photo size

4000×3000



Photo shooting mode

A single shot



Multiple BURST shots: 3/5/7



Automatic envelop exposure (AEB) : 3/5 @0.7EV step



Timed shot (interval: 2/3/5/7/10/15/20/30/60 seconds RAW: 5/7/10/15/20/30/60 seconds)

Video resolution

49:3840×1·203 24/25/30p



2 . 7K: 2688×1512 24/25/30/48/50/60p



24/25/30/48/50/60/120p FHD: 1920×1080

Video maximum code stream

100Mbps



Color pattern

D-Cinelike



File system support

·

FAT32(≤ 32 GB );exFAT(> 32 GB)

·



Image format

JPEG,DNG (RAW)



Video format

MP4 / MOV (MPEG-4 AVC/H.264)



The remote control
Working frequency Working frequency

17/5000

Maximum signal effective distance (no interference, no occlusion)

2.400 - 2.483 GHz; 5.725 - 5.850 GHz FCC: 8000m
CE: 5000m
SRRC: 5000m
MIC: 5000m



Operating temperature 0 ℃ and 40 ℃
Transmitted power (EIRP)

2.400 - 2.4835 GHz
FCC:≤26 dBm;CE:≤20 dBm;SRRC:≤20 dBm; MIC:≤20 dBm
5.725 - 5.850 GHz
FCC:≤26 dBm;CE:≤14 dBm;SRRC:≤26 dBm



Built-in battery Built-in battery
Charging time Two hours and 15 minutes
Working current/voltage

1800mA ⎓ 3.83V



Mobile support Thickness 6.5-8.5 mm, maximum length 160 mm
Remote control size (ordinary version)

Folding: 145×80×48mm (length × width × height)



Expand: 190×115×100mm (length × width × height)

Support interface types

·

Lightning, Micro USB (Type-B), USB Type-C™



The charger
Input 00-240V, 50-60Hz, 1.8A
Output

Main: 17.6 V ⎓ ⎓ 3.41 A or 17.0 V 3.53 A



USB: 5.0 V ⎓ 2.0 A

Voltage

17.6±0.1V



Rated power

60W



The searchlight


Dimensions

68×60×41mm



Port

USB Micro-B



The scope of work

30 m



power The largest 26 w
Intensity of illumination FOV17°, Max. : 11lux @ 30m
Intelligent flight battery
capacity 3850 mAh
A typical voltage

15.4V



Full charge pressure

17.6V



The battery type LiPo
energy

59.29 Wh



The weight About 297 g
Charging environment temperature

5℃ - 40℃



Working temperature - 10 ℃ to 40 ℃
Heating mode Manual heating; Automatic heating
The heating temperature - 20 ℃ and 6 ℃
Heating time

10/5000

600 seconds (maximum)

Heating power 35W (maximum)
Charging time 90 minutes
Maximum charging power

80W



Night lights
Overall dimensions

68mm×40mm×27.8mm



interface



USB Micro-B



power An average of 1.6 W
The scope of work 5000 meters
Luminous intensity

Minimum direction: 55cd;



Average upper hemisphere luminous intensity: 157cd

APP/figure
Figure and scheme

OcuSync 2.0



8/5000

Mobile App

DJI PILOT



Real-time image quality

The remote control:



30 FPS 1080 p / 720 p @ @ 30 FPS

Maximum bitrate of real-time graph transmission

40Mbps



Time delay

120 - 130 ms



Mobile device system version requirements IOS 10.0 or later Android 5.0 or later
Propaganda apparatus
Size

68×55×65 mm



Port

USB Micro-B



Power The largest 10 w
Decibel (international standard) 100db@1m or less
stream

16kbps



Memory card
Support memory card type

MicroSD card



Maximum support 128GB capacity,



The transmission Speed reaches the Micro SD card with uhs-i Speed Grade 3 rating

Annotations

[1] remote control is required

[2] with the advanced real-time digital enhancement technology, the thermal imaging image resolution of "yu" Mavic 2 industry dual-light version is much higher than the native resolution of infrared sensor.

[3] omnidirectional perception includes front, back, left, right, upper and lower six directions, but not 360 degree omnidirectional coverage. Among them, left-right perception can only provide auxiliary obstacle avoidance function in intelligent following and tripod mode and limited environment. The loss caused by lateral flight hitting obstacles (including intelligent following and tripod mode) is not covered by DJI warranty. The sensing system can only assist flight safety under limited environmental conditions, and cannot replace the judgment and control of the operator. Please always pay attention to the surrounding environment and APP warnings during flight to ensure safe flight.

[4] all the above data are measured under the latest version of firmware. Please pay attention to and keep the current firmware as the latest version to obtain the best performance.

[4] the maximum take-off altitude means that the aircraft can take off within this altitude range. By default, the maximum flight height of the aircraft is limited to 120 meters (up to 500 meters). The height limit varies in different countries/regions. Please contact the local aviation management department to understand the actual height limit, and strictly abide by local laws and regulations when flying.
