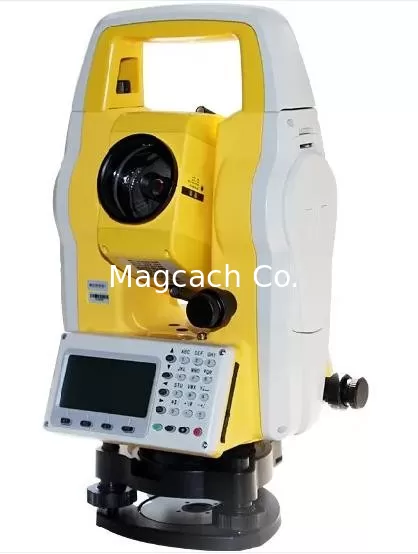

400m Hi-Target Zts-121r4 Easy Use Total Station

China 400m Hi-Target Zts-121r4 Easy Use Total Station supplier
400m Hi-Target Zts-121r4 Easy Use Total Station supplier 400m Hi-Target Zts-121r4 Easy Use Total Station supplier 400m Hi-Target Zts-121r4 Easy Use Total Station supplier 400m Hi-Target Zts-121r4 Easy Use Total Station supplier

Large Image :  400m Hi-Target Zts-121r4 Easy Use Total Station

Product Details:

Place of Origin: China
Brand Name: Hi target
Certification: CE
Model Number: 400m Hi-Target Zts-121r4 Easy Use Total Station

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Export Packing Way
Payment Terms: T/T, Western Union, , MoneyGram
Supply Ability: 10000 per year
Contact Now
Detailed Product Description
Model: 600m Reflectorless Hi-Target Zts-360r Nikon Total Station Survey Instrument Total Station Price

400m Hi-Target Zts-121r4 Easy Use Total Station Instrument Total Station Price

400m Hi-Target Zts-121r4 Easy Use Total Station





1.Multi-dot matrix LCD display,both face Alpha-numerical Keyboard

Hi-Target ZTS-120/120R series total station designed with multi-dot matrix LCD display,
which can show almost all of the measurement information at one time. The big screen withlighting function can show the menu structureand practical measurement procedures more concisely and clearly. Both Face Alpha-numerical keyboards can realize your various measurement tasks fast and conveniently.


2.Integrated of optical, mechanical and electrical precision ranging system

Hi-Target ZTS-120/120R series total station integrated the high precision ranging system, which combined with high stability mechanical structure, and high integrated circuit design, greatly improving the ranging accuracy and stability.


3.High efficient absolute encoder angle measurement system

Hi-Target ZTS-120/120R Series Total Station adopts high efficiency absolute encoder technology, highly enhancing the angle accuracy and stability, improving the degree of automation
No need initialiation when start up
Automatically saves the horizontal angle after turning off, no need to re-orientate
at the same station when re-starting up, can retain the original information when re-start after power-off. More convenient for surveying and instrument's maintenance.



4.Reflectorless Distance Measurement technology

Distance measuring with slender laser beam
Hi-Target ZTS-120/120R series total station designed with the slender laser beam precise
ranging technology, which can pass through finedraw, gridding objects, fast and accurately aiming the target and getting the correct result without any impact.
Convenient to make sure the co-axiality of sight axis and ranging axis.
Small angle target precise ranging

5.Intelligent Calibration

Hi-Target total station has integrated the elements of production, installation, detection, maintenance etc. into R&D and design phase, Special maintenance calibration software, make it easy to realize the basic maintenance and calibration completely through software, and supporting the remote assistance


6.Multiple Built-in Software

Point Stakeout
Line Stakeout
Angle Distance Stakeout
Coordinate Measurement
Resection
Remote elevation measurement
Missing Line Measurement
Single- Distance Offset
Two- Distance Offset
Angle Offset
Distance Offset
Point Projection
Elevation Intersection
Azimuth Measurement





1.Multi-dot matrix LCD display,both face Alpha-numerical Keyboard

Hi-Target ZTS-120/120R series total station designed with multi-dot matrix LCD display,
which can show almost all of the measurement information at one time. The big screen withlighting function can show the menu structureand practical measurement procedures more concisely and clearly. Both Face Alpha-numerical keyboards can realize your various measurement tasks fast and conveniently.


2.Integrated of optical, mechanical and electrical precision ranging system

Hi-Target ZTS-120/120R series total station integrated the high precision ranging system, which combined with high stability mechanical structure, and high integrated circuit design, greatly improving the ranging accuracy and stability.


3.High efficient absolute encoder angle measurement system

Hi-Target ZTS-120/120R Series Total Station adopts high efficiency absolute encoder technology, highly enhancing the angle accuracy and stability, improving the degree of automation
No need initialiation when start up
Automatically saves the horizontal angle after turning off, no need to re-orientate
at the same station when re-starting up, can retain the original information when re-start after power-off. More convenient for surveying and instrument's maintenance.



4.Reflectorless Distance Measurement technology

Distance measuring with slender laser beam
Hi-Target ZTS-120/120R series total station designed with the slender laser beam precise
ranging technology, which can pass through finedraw, gridding objects, fast and accurately aiming the target and getting the correct result without any impact.
Convenient to make sure the co-axiality of sight axis and ranging axis.
Small angle target precise ranging

5.Intelligent Calibration

Hi-Target total station has integrated the elements of production, installation, detection, maintenance etc. into R&D and design phase, Special maintenance calibration software, make it easy to realize the basic maintenance and calibration completely through software, and supporting the remote assistance


6.Multiple Built-in Software

Point Stakeout
Line Stakeout
Angle Distance Stakeout
Coordinate Measurement
Resection
Remote elevation measurement
Missing Line Measurement
Single- Distance Offset
Two- Distance Offset
Angle Offset
Distance Offset
Point Projection
Elevation Intersection
Azimuth Measurement



Model
Angle Measurement(Hz,V)
Method Absolute Code
Minimum Reading 1″
Angle Accuracy 2″
Telescope
Magnification 30X
Field of View 1°30′
Shortest Focus Distance 1.5m
Reticle Illuminated
Compensator
System Single-axis liquid-electric tilt sensor Compensator
Working Range ±3′
Setting Accuracy 1″
Distance measurement
Reflector (IR)
Range Single Prism(Atmosphere general / good / best ) 2000m/2500m/3000m
Reflector(60mmx60mm) 800m
Accuracy (Fine/Coarse/Tracking) 2mm±2ppm
Measurement Time Repeat 1s
Tracking 0.6s
Reflector-less (RL)
Range White Target board 400m
Single Prism >7500m

Accuracy

(short distance/tracking/prism)

3mm±2ppm

Measurement Time

(short distance/tracking/prism)

2s
General
Communication Internal Data Memory 20000 Points
Interface Standard RS232 port (USB port / Bluetooth optional )
Data Format ASCII(DXF/GSI optional )
Operation system Real-time English operating system
Display Graphics:192*96 pixels ,6 line*12 characters
Keyboard Alpha-numerical keyboard
Laser plummet Type Laser Point, Brightness Adjustable in steps
Centering Accuracy 1 mm at 1.5m instrument height
Power supply Battery Type Lithium-Ion
Voltage/Capacity ZBA-400:7.4V 3000mAh
Operating time with ZBA-400 16 hours
24 hous (Continuous Angle Measurement )
Weight (Incl. Battery & Tribrach) 5.5kg
Environmental Operating temperature -20ºC~+50ºC
Storage temperature -40ºC~+70ºC

Dust & Water proof

(IEC60529)

IP54
