Sokkia SRX2 2" Robotic Total Station

China Sokkia SRX2  2" Robotic Total Station supplier
Sokkia SRX2  2" Robotic Total Station supplier Sokkia SRX2  2" Robotic Total Station supplier Sokkia SRX2  2" Robotic Total Station supplier Sokkia SRX2  2" Robotic Total Station supplier Sokkia SRX2  2" Robotic Total Station supplier Sokkia SRX2  2" Robotic Total Station supplier

Large Image :  Sokkia SRX2 2" Robotic Total Station

Product Details:

Place of Origin: China
Brand Name: Sokkia
Certification: CE
Model Number: SRX2 2" Robotic Total Station

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Export Packing Way
Payment Terms: T/T, Western Union, , MoneyGram
Supply Ability: 10000 per year
Contact Now
Detailed Product Description
Model: SRX2 2" Robotic Total Station

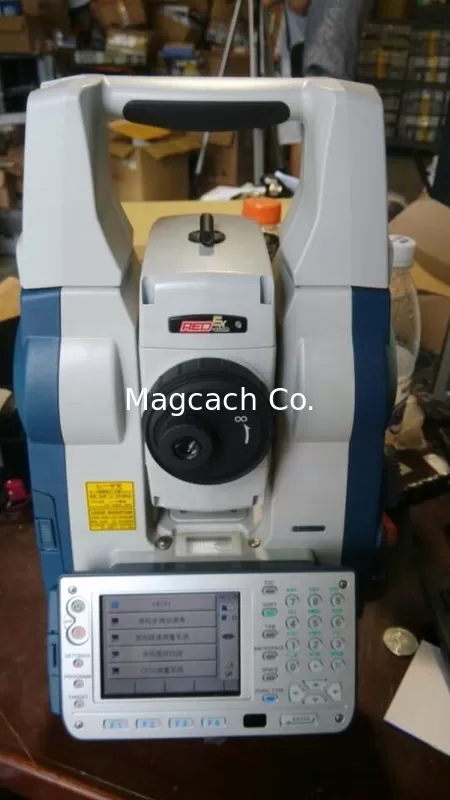

Sokkia SRX2 2" Robotic Total Station



Sokkia SRX2  2" Robotic Total Station

Specifications

The New SRX features innovative Auto-Tracking and EDM technologies that maximize the robotic surveying capability.

Extremely Robust Auto-Tracking

The new SRX total stations feature cutting-edge laser technology, optimized optical design, newly-developed motor drive mechanism, and further refined tracking algorithm, to achieve extremely robust Auto-Tracking capability.



The new SRX constantly tracks a moving prism even in strong backlight or with repetitive interruptions in the line-of-sight, dramatically reducing possibility of losing a prism lock. Even if the lock is lost, the advanced on-demand remote control system allows the SRX to instantly recover the prism lock, ensuring increased productivity in all robotic surveying and setting-out tasks.


1,000m Reflectorless Measurement Range



New RED-tech 800 EDM provides increased accuracy and range in distance measurements with or without reflectors, incorporating the new optical design, the enhanced signal processing algorithm, as well as the ultra-high signal modulation frequencies of up to 468.75MHz.

The RED-tech 800 provides measurement accuracy of 1.5mm 2ppm with 360° prisms or standard prisms, and 2mm 2ppm without a reflector. It measures up to 6,000m (19,680ft) distance with a single prism, and up to 800m (2,620ft) without a reflector.

The reflectorless measurements of up to 1,000m (3,280ft) range is possible when the brightness at object surface is 500 lux or less, regardless of ambient brightness conditions.
