Product Details:
Payment & Shipping Terms:
|
Model: | PENTAX R202NE TOTAL STATION | None Prism: | 350m |
---|

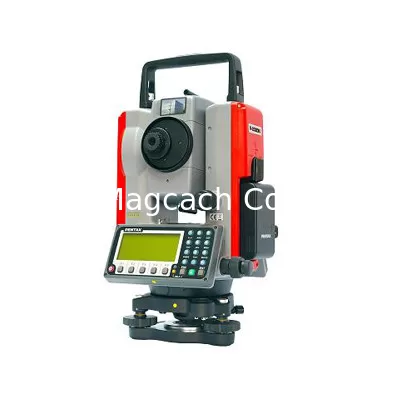

PENTAX R202NE TOTAL STATION
Item specifics
Place of Origin: Shanghai China (Mainland)
Brand Name: Pentax
Model Number: R-202NE
accuracy: 2"
color: white and red
Instrument type | R-202NE | R-202NE(POWER) | ||
Telescope | object diameter | 45mm( EDM 45mm) | ||
magnification | 30 × | |||
field view | 1°30 | |||
resolving power | 3 " | |||
minimum focus | 1.0m (manual focus) | |||
Distance measurement | Range miniprism | 1.5m-800m(1000m) | ||
Range 1 prism | 2,200m | |||
Ramge 3 prism | 3,000m | |||
Range prismless | 270m | 350m | ||
Accuracy with prism | ±(2mm+2ppm×D) | |||
Accuracy prismless | ±(3mm+2ppm×D) | |||
Measure time | Regular measuremetn | 2.0seconds(normal),1.2 seconds(quick) | ||
Raw measure mode | Tracking measurement | 0.4seconds | ||
Angle measurment | accuracy | 2 " | ||
Measure method | Absolute encode | |||
Minimum read | 1"/5 " | |||
Display | Display | Dual side (numberic) | ||
Tilt correction | Type | Single axis | ||
Range | ±3 | |||
Laser plummet | Invisible laser | |||
Accuracy ±1.0mm(the height of the instrument 1.5m) | ||||
Focus range | 0.5~∞ | |||
Field of view | 3°30 | |||
Working condition | Anti-water and dust | IP54 | ||
temperature | -20°C~+50°C | |||
power | Internal batteries | BP02C | ||
charger | STD-C03 | |||
Continuouse measure time | 8 hours | |||
Other factors | demension | 343H×172W×177L | ||
weight (with batteires | 5.4kg | |||
Communication connector | RS-232C | |||
program | program | <PowerTopo Lite> | ||
Memeriy capacity | 20,000 point | |||
Road software | positive |
