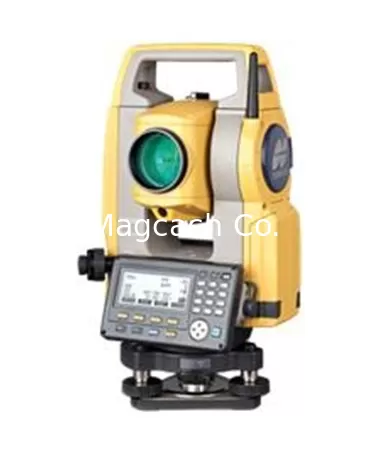

Topcon ES-107 Total Station None Prism 7" accuracy

Certification
Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

Topcon ES-107 Total Station None Prism 7" accuracy

China Topcon ES-107 Total Station None Prism 7" accuracy supplier
Topcon ES-107 Total Station None Prism 7" accuracy supplier Topcon ES-107 Total Station None Prism 7" accuracy supplier Topcon ES-107 Total Station None Prism 7" accuracy supplier Topcon ES-107 Total Station None Prism 7" accuracy supplier

Large Image :  Topcon ES-107 Total Station None Prism 7" accuracy

Product Details:

Place of Origin: Japan
Brand Name: Topcon
Certification: CE
Model Number: ES107

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Export Shipping Way
Delivery Time: 1-2 weeks after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 per year
Contact Now
Detailed Product Description
None Prism Distance: 500m Accuracy: 7"

Topcon ES-107 Total Station None Prism 5” accuracy



Topcon ES-107 Total Station None Prism 7" accuracy





The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.

Ultimate in Rechargeable operation - 36 Hours

Up to 36 hours of operation on a single charge.*1

Eliminates the need for nightly recharging and carrying extra batteries.

Work with confidence all day without the worry of dead batteries

Rugged, Waterproof Design

Waterproof/Dustproof IP66 design handles the toughest environments

Magnesium-alloy housing providing stable angle accuracy Completely

Easy Access USB 2.0 Memory

Up to 8MB storage

Environmentally protected

Compatible with industry standard accessories and cables

Ultra-Powerful, Advanced EDM

500m non-prism range

4000m prism range

Less than 1 second fine measurement

Operating time may vary depending on environmental conditions and type of work being performed.

QUICK Specifications
Angle Measurement
  Min. Resolution/Accuracy
ES-101 0.5”/1”
ES-102 1”/2”
ES-103 1”/3”
ES-105 1”/5”
ES-107 1”/7”
IACS (Independent Angle Calibration System) Standard om 1” & 2” models
Compensation Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m (ES-107 3000m)
Prism EDM Accuracy 2mm+2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+2ppm (0.3-200m)
Measuring Time Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/Keyboard Dual, Graphic, Backlit
LCD (ES-107 Single)
Battery Operation up to 36 hours
Dust/Water Protection IP66
Wireless Connection Bluetooth Class 1
Operating Range -20C to +50C
-30C to +50C
-20C to +60C
