Nikon Total Station DTM322+

Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

Nikon Total Station DTM322+

China Nikon Total Station DTM322+ supplier
Nikon Total Station DTM322+ supplier Nikon Total Station DTM322+ supplier Nikon Total Station DTM322+ supplier Nikon Total Station DTM322+ supplier

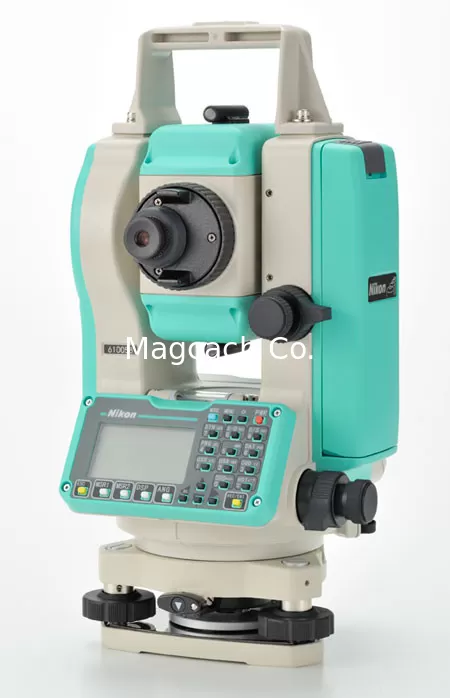

Large Image :  Nikon Total Station DTM322+

Product Details:

Place of Origin: China
Brand Name: Nikon
Certification: CE
Model Number: DTM322

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

Nikon Total Station DTM-322

· Legendary Nikon optics

· Fast, accurate EDM

· 3" and 5" angle accuracies

· Convenient and long-lasting, re-chargeable AA batteries

· Easy-to-use keypad

· Rugged and lightweight

· Linear focusing mechanism


product features

- Low cost economical total station solution
- Fast measuring, less than 1.6 seconds in precise mode
- Precision Nikon optics which are brighter, clearer images compared with other low cost total stations
- 3" and 5" models available
- up to 10,000 point storage
- Easy to read graphical LCD display

DTM-322 specifications

- Angle Measurement (minimum increment): 1"
- Angular Accuracy: 3", 5"
- Distance Measurement Single Prism: 1.5 to 2300 meters
- Measuring Accuracy Prism: +/-3+2 ppm x D mm
- Telescope: 30x magnification
- Tilt Sensor: Single axis compensator
- Display: Backlit graphical LCD
- Communication: 1x serial RS232C
- Water & Dust Protection: Waterproof to IP55
- Weight: 5.0kg including batteries
- Battery Type: AA NiMH
- Battery Operating Time: 6 hours continuous distance/angle measurement (19 hours Nivo 2.M)



Nikon introduces the DTM-322 Total Station that delivers an economic, versatile, and easy-to-use platform to make sure you get the job done right. Nikon's legendary optics effectively allow in more light to give you brighter, clearer images. You'll see the difference when you look through a Nikon Total Station even in the low-visibility conditions typical in the field. You'll see much more detail and much less distortion, especially over longer distances. Better optics help you aim more precisely, and they're much easier on your eyes - something you'll really appreciate on long workdays.

The Nikon DTM-322 Total Station is among the fastest total stations in its class, so you can move quickly through your routines and spend less time in the field. The DTM-322 is rugged and lightweight - at 5kg (11 lb) including the battery.

Using rechargeable AA batteries, the DTM-322 is designed to consume low power and provide the longest possible time in the field. Off-the-shelf AA batteries can also be used as a back-up to provide even longer life.

DTM-322 is available in a 3" dual face model and a 5" single face model to meet your specific accuracy needs.

The Nikon DTM-322 is built tough for all occasions.



Nikon Total Station DTM322+
