MEASURING STATION MS05AXII

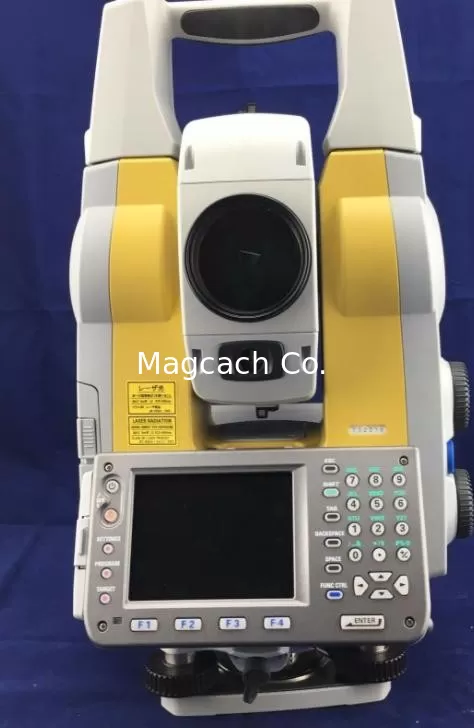

Topcon MS05AX Total Station

Measuring Range Reflectorless:0.5 to 100mAuto-Tracking Range w/ 360° prism:2 to 600mMinimum Distance Resolution - Fine mode:0.01mmAuto-Pointing Accuracy With Prism:1mm@200mDistance Accuracy w/ Reflective sheet:(0.5 + 1ppm x D)mmAuto-Pointing Accuracy w/ReflectiveSheet:1mm@50mMeasuring Range w / reflective sheet:1.3 to 200mAngle Accuracy:0.5", 0.15mgon, 0.0025milDistance Accuracy Reflectorless:(1 + 1ppm x D)mmAngle Display Resolutions (Selectable):0.1" / 0.5" 0.00002 / 0.0001gon 0.0005 / 0.002milModel:

(MS Series)

- 1” auto-pointing accuracy with a standard prism

- Enlarged 3.7 inch LCD with automatic brightness control

- Reflector Prescan* can be used to quickly locate target positions, dramatically reducing initial setup time for structural monitoring

- Specialized Auto-Pointing algorithm enhances reliability of periodic monitoring with predetermined prisms

- Constantly tracks a moving prism up to 90km/h at a distance of 100m (56mph at 320ft.)

- Built-in target illumination for use in dim lighting conditions

- Robust IP64 dust/water protection
