None Prism Distance: | 350m | Accuracy: | 2" |
---|
NEW TOPCON GTS-1002, 2” 400m PRISMLESS RANGE TOTAL STATION USA STOCK 1Y WARRANTY
Model | GTS-1002 | ||
Telescope | |||
Magnification/Resolving power | 30X/2.5" | ||
Length: 150mm, Objective aperture: 45mm (EDM:48mm), | |||
Other | Image: Erect, Field of view: 1°30' (26m/1,000m), | ||
Minimum focus: 1.3m | |||
Angle measurement | |||
Display resolutions | 1"/5" | ||
Accuracy (ISO 17123-3:2001) | 2'' | ||
Method | Absolute | ||
Compensator | Dual-axis liquid tilt sensor, working range: ±6′ | ||
Distance measurement | |||
Laser output level | Non prism: | 3R Prism/ Reflector 1 | |
Measuring range | |||
(under average conditions *1 ) | |||
Reflectorless | 0.3 ~ 350m | ||
RS90N-K:1.3 ~ 500m | |||
Reflector | RS50N-K:1.3 ~ 300m | ||
RS10N-K:1.3 ~ 100m | |||
Mini prism | 1.3 ~ 500m | ||
One prism | 1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m | ||
Accuracy | Reflectorless | (3+2ppm×D)mm | |
Reflector | (3+2ppm×D)mm | ||
Prism | (2+2ppm×D)mm | ||
Measurement time | Fine: 1mm: 0.9s Coarse: 0.7s, Tracking: 0.3s | ||
Interface and Data management | |||
Display/keyboard | Adjustable contrast, backlit LCD graphic display / | ||
With backlit 25 key (alphanumeric keyboard) | |||
Control panel location | On both faces | ||
Data storage | |||
Internal memory | 10,000pts. | ||

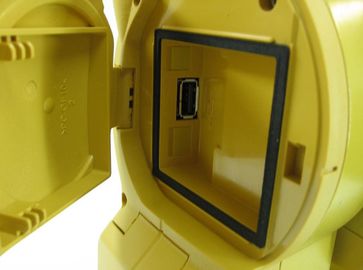

External memory | USB flash drives (maximum 8GB) | ||
Interface | RS-232C; USB2.0 | ||
General | |||
laser Designator | Coaxial red laser | ||
Levels | Circular level | ±6′ | |
Plate level | 10′ /2mm | ||
Optical plummet telescope | Magnification: 3x, Focusing range: 0.3m to infinity, | ||
Dust and water protection | IP66 | ||
Operating temperature | -20 ~ +60℃ | ||
Size | 191mm(W)×181mm(L)×348mm(H) | ||
Weight | 5.6kg | ||
Power supply | |||
Battery | BT-L2 lithium battery | ||
Working time | 25 hours |
