None Prism Distance: | 500m | Accuracy: | 2" |
---|

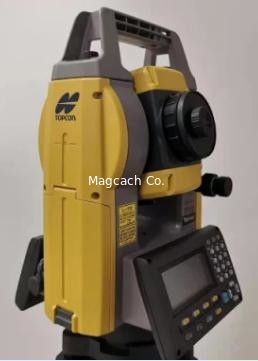

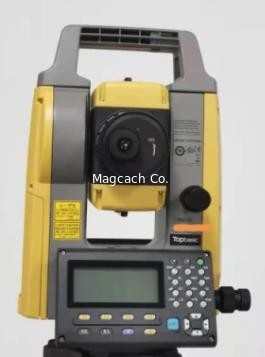

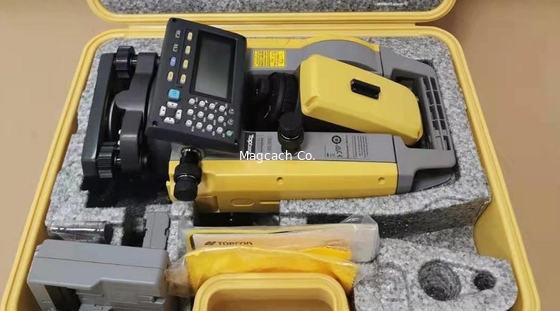

Topcon GM 52 Total Station
Topcon GM-52 This powerful, cost efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a rugged housing and extended battery-life you’ll be able to handle even the toughest conditions.
The new GM-50 series of measuring stations is a combination of traditional Japanese Topcon’s quality and accuracy, economical and compact design that is ideal for day-to-day measurements. High speed and powerful remote, robust design (protection IP66), data storage on USB Flash memory up to 32 GB, prism-less reach up to 500 m, single-battery operation up to 14 hours makes it an excellent solution for work in geodata and construction.
Designed to deliver the latest technological advantages in a sleek design, each GM-50 series total station is equipped with a best-in-class EDM. The total station measures up to 4,000 meters to standard prisms (5,000 meters under good conditions) and up to 500 meters in reflector-less mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot
KEY FEATURES
*Newly Designed High-End Class EDM
Especially effective in surveying control points that require high-accuracy, and in cross sectional surveying in large areas with reflectorless measurement mode.
*Reliable Large Volume Memory
Internal memory has 50000 points to record . USB memory can be used up 32GB.
*Strong Environmental SPEC
The IP66 rating ensures durability for most any rough job site temperatures and conditions
*Long-life Battery
On battery (BDC70) lasts up to 28 hours, or about four days of normal operation time.
*Bright Illumination Key for Nighttime Work
Key buttons are illuminated to minimze mistakes.
PRODUCT SPECIFICATION | |
Telescope | |
Magnification / Resolving power | 30x / 2.5" |
Others | Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm |
(1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), | |
Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness | |
Angle measurement | |
Minimum Display | 1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil) |
Accuracy (ISO 17123-3:2001) | 2" |
Dual-axis compensator / | Dual-axis liquid tilt sensor, working range: ±6' |
Collimation compensation | On/Off (selectable) |
Distance measurement | |
Laser output*1 | Reflectorless mode : Class 3R / Prism/sheet mode : Class 1 |
Measuring range Reflectorless | 0.3 to 500m (1,640ft.) |
Measuring range Reflective sheet | RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), |
RS50N-K: 1.3 to 300m (4.3 to 980ft.), | |
RS10N-K: 1.3 to 100m (4.3 to 320ft.) | |
Mini prism | 1.3 to 500m (4.3 to 1,640ft.) |
One prism | 1.3 to 4,000m (4.3 to 13,320ft) |
Minimum Display | Fine / Coarse : 0.0001m (0.001ft. / 1/8 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) |
Coarse : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1 in.) | |
Accuracy | |
Reflectorless | (2 + 2ppm x D) mm* |
Reflective sheet | (2 + 2ppm x D) mm |
Prism | (1.5 + 2ppm x D) mm |
Fine | 0.9s (initial 1.5s) |
Coarse | 0.6s (initial 1.3s) |
Tracking | 0.4s (initial 1.3s) |
OS, Interface and Data management | |
Operating system | Linux |
Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / |
Alphanumeric keyboard / 28 keys with backlight | |
Control panel location | On both faces |
Internal memory | Approx. 50,000 points |
Plug-in memory device | USB flash memory (max. 32GB) |
Ultra-powerful advanced EDM | 1000M non-prism range |
6000M prism range | |
Easy Access USB2.0 memory | Up to 32GB storage |
Environmentally protected | |
Compatible withindustry standard thumb driver | |
Advanced Angle encoder system | "best-in-class" 1'' angle accuracy |
Incorporates exclussive IACS | |
Rugged,waterproof design | Waterproof IP66 design |
Magenesium-alloy housing providing stable angle accuracy | |
Graphic dispaly and alphanumetric key board | |
On-board TopBasic program | Run onboard basic layout and topo program with the topcon gm sereis total station |
