|None Prism Distance:||500m||Accuracy:||5"|

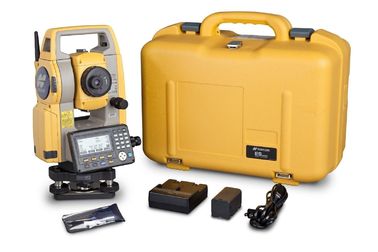

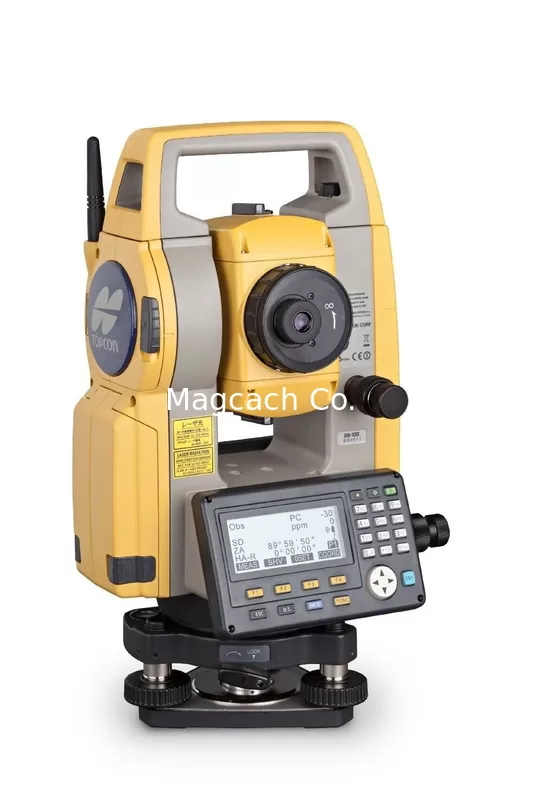

Topcon ES-105 Total Station None Prism 5” accuracy
The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.
Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.
Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.
Ultimate in Rechargeable operation - 36 Hours
Up to 36 hours of operation on a single charge.*1
Eliminates the need for nightly recharging and carrying extra batteries.
Work with confidence all day without the worry of dead batteries
Rugged, Waterproof Design
Waterproof/Dustproof IP66 design handles the toughest environments
Magnesium-alloy housing providing stable angle accuracy Completely
Easy Access USB 2.0 Memory
Up to 8MB storage
Compatible with industry standard accessories and cables
Ultra-Powerful, Advanced EDM
500m non-prism range
4000m prism range
Less than 1 second fine measurement
Operating time may vary depending on environmental conditions and type of work being performed.
|IACS (Independent Angle Calibration System)||Standard om 1” & 2” models|
|Prism EDM Range||4000m (ES-107 3000m)|
|Prism EDM Accuracy||2mm+2ppm|
|Non-Prism Accuracy||3mm+2ppm (0.3-200m)|
|Measuring Time||Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
|LongLink™ rover communications utilizing Class 1 Bluetooth|
|USB 2.0 Slot|
|Display/Keyboard||Dual, Graphic, Backlit
LCD (ES-107 Single)
|Battery Operation||up to 36 hours|
|Wireless Connection||Bluetooth Class 1|
|Operating Range||-20C to +50C
-30C to +50C
-20C to +60C
