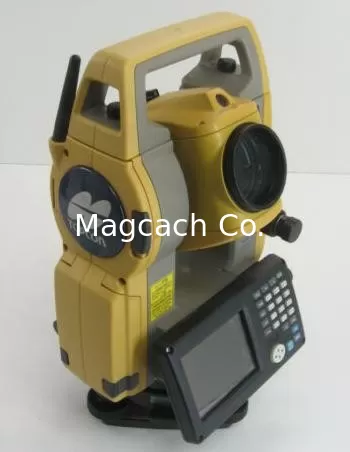

Topcon Total Station OS105 Total Station

China Topcon Total Station OS105 Total Station supplier
Topcon Total Station OS105 Total Station supplier Topcon Total Station OS105 Total Station supplier Topcon Total Station OS105 Total Station supplier

Large Image :  Topcon Total Station OS105 Total Station

Product Details:

Place of Origin: Japan
Brand Name: Topcon OS105 Total Station
Certification: CE
Model Number: OS105

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Export Shipping Way
Delivery Time: 1-2 weeks after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 per year
Contact Now
Detailed Product Description
None Prism Distance: 500m Accuracy: 5"

Topcon OS-105 Total  Station



Topcon Total Station OS105 Total Station

Topcon’s new OS Series Total Stations – New Advanced Design with Superior Technology

The OS is a professional grade compact design total station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software.

Features

Advanced Security & Maintenance with New TSshield™

MAGNET Field On-board

Exclusive LongLink™ Communications Functionality

Fast and Powerful EDM

Advanced Angle Accuracy

World’s First TSshield™ Remote Security and Notification System

· Disable your instrument remotely if lost or stolen

· Get notified of Firmware updates

Online instrument operational history

The OS is the perfect total station for many field applications including:

Land Surveying Property
Land Surveying Topo & Stakeout
Earthwork Volumes

Building Interior Layout
Construction of Roads
Law Enforcement Mapping





Primary OS features include:
Exclusive LongLinkTM Ultra-Powerful, Advanced EDM
• 300m+ Wireless Link to Controller
• Field Controller at the Prism Pole
• More accurate code descriptions
• Collect point Images at the measurement point.
• 500m non-prism range
• 4000m prism range
• Red/Green Guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot

Advanced Angle Encoder System EDM Trigger Key
• “Best in Class” 1” angle accuracy available
• Incorporates exclusive IACS
(Independent Angle Calibration System)
on 1” & 2” models
• Self calibration
• Proven High Accuracy Technology
• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands

Advanced OS features include: Standard OS package includes:
• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button
• OS Total Station
• Battery and Charger (one battery and charger included)
• Lens Cap and Hood
• Tool Kit
• USB stick with digital Manual
• Quick Guide
• Carry Case and Carry Straps





Achieve higher levels of production with MAGNET Field on-board software

Part of the MAGNET Solution, MAGNET Field On-board runs directly on the OS total station touch screen. Utilize the on-board USB port to plug a USB flash drive into the side panel for fast file transfer. Or for more traditional transfer, use a USB mini cable and transfer files to MAGNET Office Tools.

With direct exchange between MAGNET Field On-board and MAGNET Office Tools, you will see an increase in overall productivity.

All of the total station functions are available directly on-board. In Survey, there is Topo, X-Section, Find Station, Tape Dimension, and Missing Line. In Stake, there is Points, Lines, Offsets, Surface, Point in Direction, Curve, Real-Time Roads, Road, Slope, and Linework staking. Plus many calculation functions like Inverse, Intersection, Curves, Area, Corner Angle, Offsets, Adjust, Traverse, and DTM.



General
Weight 12.3 lbs (5.6 kg)
Dimensions 7.5 in x 7.5 in x 13.7 in (19.1 cm x 19 cm x 34.8 cm)
Warranty 1 year
Protection Class IP65 (dust proof and water jets resistant)
Internal Memory 750 MB
Software MAGNET Field
Guide Light Green and red LED; Operating time: 1.3 to 150 m (4.3 to 490 ft)

Angle Measurement
Measuring Method/Reading System Independent Angle Calibration System (IACS)
Accuracy 5-second

Distance Measurement
Unit of Measure (distance display) m/ft
EDM Accuracy (Precision) ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism
Minimum Reading 500 m (1,640 ft)

Tilt Sensor/Compensator
Range ± 6
Type Liquid
Method Electronic Automatic

Battery/Power
Power Source Rechargeable Li-ion battery
Battery Life 20 hours
Battery Life Alert yes

Telescope
Length of Tube 6.7 in (17.1 cm)
Image Erect
Diameter of Objective Lens (Aperture) 1.9 in (48mm) EDM
Magnification 30x
Field of View 1 degree 30 arcmin
Resolving Power 2.5 arcsec
Minimum Focus Distance 1.3 m (4.3 ft)
Reticle Illumination 5 brightness levels
Reflectorless yes

Display and Keypad
Type Semi-transmissive TFT QVGA color LCD
Sides Dual
Keys Alphanumeric
Touchscreen yes
Backlight yes

Temperature
Operating -4Fº~140ºF (-20ºC~60ºC)

Applications
Surveying and Construction yes
Mapping and GIS (geographic information systems) yes
Utilities yes
Environment Studies yes
Geomarking yes
Archaeology yes
Accident Reconstruction yes

Measurement Range (under fair weather conditions)
Single Prism 5,000m (16,400 ft)
Triple Prism 6,000m (19,680 ft)
No Prism 500 m (1,640 ft)
Mini Prism 500 m (1,640 ft)
Reflector Sheet 500 m (1,640 ft)

Functions
Coordinate Measurement Point yes
Angle and Distance Stake Out yes
Stake Out Line yes
Offsets yes
Missing Line yes
Remote Elevation yes
Resection yes
Area Calculation yes

Measurement Time
Fine 0.9-second
Rapid 0.7-second
Tracking 0.3-second

Laser Plummet
Accuracy ±1.0 mm/1.3 m
Class 2
Wavelength 635 nm

Interface
Bluetooth Class 1 LongLink technology
USB Type A and mini B
Pin Port RS-232C
Operating System Windows CE 6.0
