FOIF China Brand Total Station RTS112SR6 Reflectorless Distance 600M

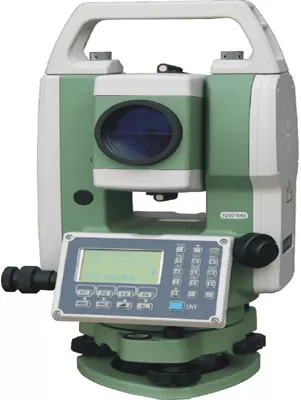

Large Image : FOIF China Brand Total Station RTS112SR6 Reflectorless Distance 600M

Product Details:

Place of Origin:	China
Brand Name:	FOIF
Certification:	CE
Model Number:	RTS112R6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	with standard import packing way
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000 per year

Contact Now

Detailed Product Description

Model:	FOIF RTS112SR6 TOTAL STATION	Compensator:	Dual-axis Compensator
Protect Level:	IP66 Protection	Display:	LCD Display With 6linesx20characters

FOIF RTS112SR6 TOTAL STATION

FOIF China Brand Total Station RTS112SR6 Reflectorless Distance 600M

Product Features:

◎ New Stent Design
◎ New Fast Digital Rangefinder Head
◎ 32-bit Microprocessor
◎ Optimize the software job flow
◎ Long Distance non prism (Rseries)
◎ Absolute Coding System
◎ USB Port Fast Communication
◎ Big Capacity Storage
◎ Large capacity Lithium battery
◎ Bluetooth communication function

◎ With line calculation, traverse adjustment function

*Telescope*	Imaging:		Field of View:	1°30′
	Effective Aperture of Objective Lens:	φ45mm	Resolution:	3.5 ″
	Magnification:	30x	Min.Visual Distance:	1.0m
*Ranging*	Accuracy:	± (2mm+2x10-6 D)
	Ranging:	600m/non prism; 800m/reflector sheet 5000m/single Prism
	Crude Test 1.2S, Fine Test 0.7S, Tracking 0.4S
*Angle measurement*	Angle Measuring Method:	Absolute Encoding
	Angle measuring accuracy:	2″
	Min Reading:	1″/5″
*Compensator*	Compensation method:	Single Axle compensation
	Compensation Range:	±3′
*Power supply*	Operating voltage:	7.4V DC (rechargeable lithium ion battery)
	Working hours:	Continuous measuring angle ranging about 10 hours, continuous angle of about 45 hours
*Other*	Communication:	RS-232C/USB (optional) SD card (optional)/Bluetooth (optional)
	Memory	120000
	Waterproof, Dustproof	IP66
