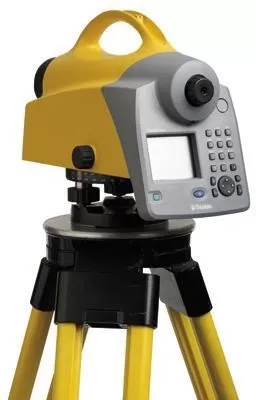

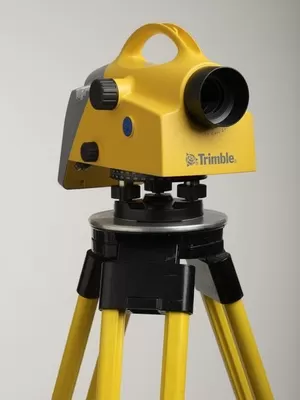

Digital Level Trimble Dini03 Digital Level

China Digital Level Trimble Dini03 Digital Level supplier
Digital Level Trimble Dini03 Digital Level supplier Digital Level Trimble Dini03 Digital Level supplier Digital Level Trimble Dini03 Digital Level supplier Digital Level Trimble Dini03 Digital Level supplier Digital Level Trimble Dini03 Digital Level supplier

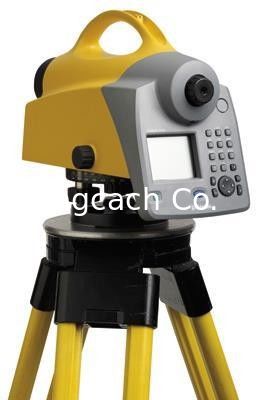

Large Image :  Digital Level Trimble Dini03 Digital Level

Product Details:

Place of Origin: China
Brand Name: Trimble
Certification: CE
Model Number: Dini 03

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: usd4800-usd5000
Contact Now
Detailed Product Description
Model Number: Dini03 Visual Measurement: 1.5 Mm (0.005 FT)
Standard Bar Code Staff:: 1.0 Mm (0.004 FT) 1.0 Mm (0.004 FT): 0.3 Mm (0.001 FT)
Telescope: 40 Mm (0.131 FT) Electronic: 1.5m-100m

TRIMBLE DINI03 DIGITAL AUTO LEVEL



Digital Level Trimble Dini03 Digital Level

PERFORMANCE
Accuracy DIN 18723, standard deviation height measuring per 1 km (3280.84 ft) of double leveling
Trimble DiNi 0.3 mm per km
Electronic measurement Invar precision bar code staff 0.3 mm (0.001 ft)
Standard bar code staff 1.0 mm (0.004 ft)
Visual measurement 1.5 mm (0.005 ft)
Distance measurement with a 20 m (65.62 ft) sighting distance Invar precision bar code staff 20 mm (0.066 ft)
Standard bar code staff 25 mm (0.082 ft)
Visual measurements 0.2 m (0.656 ft)
Trimble DiNi 0.7 mm per km
Electronic measurement Invar precision bar code staff 0.7 mm (0.066 ft)
Standard bar code staff 1.3 mm (0.082 ft)
Visual measurements 2.0 m (0.656 ft)
Distance measurement with a 20 m (65.62 ft) sighting distance Invar precision bar code staff 25 mm (0.066 ft)
Standard bar code staff 30 mm (0.082 ft)
Visual measurements 0.3 m (0.656 ft)
Range
Electronic measurement 1.5 m-100 m (4.92 ft-328.08 ft)
Visual measurement from 1.3 m (4.265 ft)
Electronic Measurement
Trimble DiNi 0.3 mm per km
Electronic measurement Resolution height measurement 0.01 mm / 0.0001 ft / 0.0001 in
Resolution distance measurement 1 mm (0.003 ft)
Measurement time. 3 s
Trimble DiNi 0.7 mm per km
Electronic measurement Resolution height measurement 0.1 mm / 0.001 ft / 0.001 in
Resolution distance measurement 10 mm (0.033 ft)
Measurement time. 2 s
Horizontal Circle
Type of graduation 400 grads and 360 deg
Graduation interval 1 grad and 1deg
Estimation to 0.1 grad and 0.1 deg
Measurement Programs: Trimble DiNi 0.3 mm per km
Standard programs Single measurement with and without stationing, stakeout, line leveling with intermediate sight and stakeout, line adjustment
Leveling methods¹ BF,BFFB, BFBF, BBFF, FBBF aBF, aBFFB, aBFBF, aBBFF, aFBBF
GENERAL SPECIFICATION
TELESCOPE Aperture 40 mm (0.131 ft)
Field of view at 100 m. 2.2 m (7.217 ft)
Electronic measurement field 0.3 m (0.984 ft)
Magnification Trimble DiNi 0.3 mm per km 32 x
Trimble DiNi 0.7 mm per km 26 x
Compensator
Inclination range
Setting accuracy Trimble DiNi 0.3 mm per km ±0.2"
Trimble DiNi 0.7 mm per km ±0.5"
Circular level 8'/2 mm with Illumination
Display Graphical, 240 x 160 pixels, monochrome with illumination
Keyboard 19-key alpha-numeric and 4-way arrow key for navigation
Recording Internal memory up to 30 000 data lines
External memory USB Flash Drive support
Data transfer USB Interface for data transfer between DiNi and PC (means two way communication)
Real-time clock and temperature sensor Trimble DiNi 0.3 mm per km Recording of time or temperature
Trimble DiNi 0.7 mm per km N.A.
Power supply Internal battery Li-Ion, 7.4 V / 2.4 Ah
  Operating time 3 days working time without illumination
Weight (including battery) 3.5 kg (7.72 lb)



Packaging & Shipping
within 7 days received 100% payment

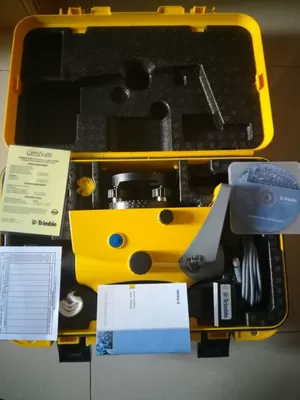

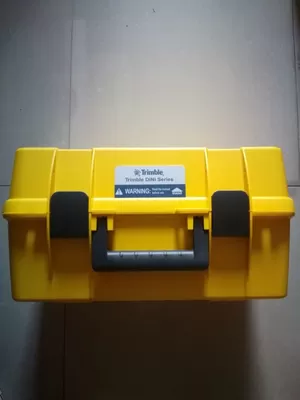

original package
Our Services

your inquiry will be replied within 24 hours, we welcome your email and call at any time.
our products are original and 100% new. and they will be carefully checked before we ship them out.
we provide one year quality warranty, within one year since you bought the products from us, you will get our technology support.
