New Brand Pentax Digital Theodolite ETH502

China New Brand Pentax  Digital Theodolite  ETH502 supplier
New Brand Pentax  Digital Theodolite  ETH502 supplier New Brand Pentax  Digital Theodolite  ETH502 supplier New Brand Pentax  Digital Theodolite  ETH502 supplier New Brand Pentax  Digital Theodolite  ETH502 supplier

Large Image :  New Brand Pentax Digital Theodolite ETH502

Product Details:

Place of Origin: China
Brand Name: Pentax
Certification: CE
Model Number: ETH502

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD550-usd650 per pc
Packaging Details: within Standard packing way : internal in plastic case ;external in carton
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 per year
Contact Now
Detailed Product Description
Accuracy: 2" Brand: Pentax

Pentax ETH-502 Electronic Theodolite - 2" Accuracy.



New Brand Pentax  Digital Theodolite  ETH502
Key Features include
· Large easy to read-display
· Zero set and reverse angle display
· A row of soft keys allows simple and fast operation.

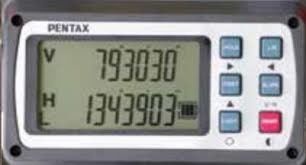

· A large display (LCD) is incorporated on both sides of the instrument. Both vertical and horizontal angles are displayed in degrees or gons.
· All the models have a bright 30x magnification telescope which ensures sharp and clear images even in poor light conditions.
· Clockwise and counter-clockwise angle measurement
· Conversion of the vertical angle to a percentage grade
· Zero setting of the horizontal angle at any position
· Horizontal angle 'Hold key function
· Clockwise and counter-clockwise angle measurement
· Conversion of the vertical angle to a percentage grade
· Zero setting of the horizontal angle at any position
· Horizontal angle 'Hold key function
· Powered by Alkaline batteries
Applications
· Setting out right angles and checking plumb
· Alignment measurements
· Anchor bolt layout
· 90° layout

Electronic Theodolites ETH-500 Series Specification
Model   ETH-502 ETH-505 ETH-510 ETH-520
Telescope Imaging   Erect image
  Objective aperture   45 mm
  Magnification   30 x
  Resolution   ≤ 3"
  Field of view   1° 20'
  Shortest focusing distance   1.35 m
  Stadia multiplication constant   100
  Stadia addition constant   0
Angle Measuring Angle measuring mode   Absolute encoder
  Angle measuring accuracy 2" 5" 10" 20"
  Angle display 1"/5" 1"/5" 5"/10" 10"/20"
  Angle unit   360°/400G
Compensator Tilt sensor   Automatic vertical compensation
  Tilt compensator Yes Yes No No
  Soft switch ON/OFF ON/OFF - - - -
  Compensation range   ± 3'
Display unit Two-sided   Two-sided
Optical plummet Image Erect   Erect
  Magnification   3 x
  Angle of vision
  Focusing range   0.5 m ~ ∞
  Sensitivity of tubular vial mm 30"/2 30"/2 40"/2 mm 40"/2 mm
  Sensitivity of circular vial   8'/2 mm
Dust & Water Protection     IP44
Type of base     Detachable
Power supply Battery   4 x single three (AAA) type dry battery
Ambient temperature For operation   -20°C - +50°C
Weight Instrument   4.5 kg
Measurements Carrying case   1.9 kg
  Instrument   W 175 mm x L 170 mm x H 334 mm
  Carrying case   W 330 mm x L 450 mm x H 220 mm
