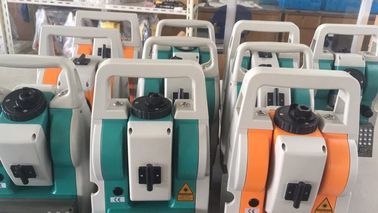

China Brand new Mato Total Station MTS602R Reflectorless Total Station 400m to 500m
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Reflectorless Distance: | 400m To 500m | Operating Software: | Similar As The Sokkia CX Series |
|---|---|---|---|
| Color: | Green ,Green And Gray , Orange And Gray | Language: | English ,French ,Spanish ,Portuguese , Intalian ,Russian ,etc |
| The Addition Configuration: | The MTS802R Can With With Bluetooth ,USB Port | OEM: | Yes |
| Gurantee: | 1 Year |
|
MODEL |
MTS-602 | MTS-602R | MTS-605R |
| Telescope | |||
| Image | Erect | ||
| Magnification | 30X | ||
| Effective Aperture | 45mm(DTM 50mm) | ||
| Resolving Power | 4" | ||
| Field Of View |
1°30' |
||
| Minimum Focus | 1.5m | ||
| Distance Measurement(under Fair Weather Condition) | |||
| None prism | 100m | 200m | 200m |
| Range 1P | 2.0km | 3.0km | 3.0km |
| sheet | 800m | 3.0km | 3.0km |
| Accuracy | 2mm+2ppmxD | ||
| Minimum Count | 1mm | ||
| Distance Unit | ft.Or m selectable | ||
| Measuring Time | |||
| Fine | 1.8sec.(first time2.5sec.) | ||
| Tracking | 0.4 Sec. | ||
| Maximum display | 999999.999m | ||
| Atmospheric Correction | |||
| Temperature | C or F | ||
| Atmospheric Pressure | hPa/mmH/inHg | ||
| Atmospheric Deflection & | |||
| Earth Curvature Correction | k=0.14/0.20/0 | ||
| Prism Constant | 0 mm / 30 mm | ||
| Angle Measurement | |||
| Measurement Method | Incremental Photoelectronic Encoder | ||
| Detection Method | |||
| Horizontal | Dual | ||
| Vertical | Dual | ||
| Accuracy | 2" | 2" | 5" |
| Minimum Readout | 1"and5" | 1"and5" | 5"and10" |
| Sensitivity of Vials | |||
| Plate Vial | 30"/2mm | ||
| Circular Vial | 8'/2mm | ||
| Vertical Compensation | Available | ||
| Type | Liquid-electric detection/Plate level | ||
| Compensation Range | +/-3' | ||
| Resolution | 1" | ||
| Optical Plummet | |||
| Image | Erect | ||
| Magnification | 3X | ||
| Focus Rang | 0.5m-infinity | ||
| Display | Double Side, LCD, Four-line Display | ||
| Data Port | RS-232 | ||
| Battery | Lithium Rechargeable | ||
| Voltage | 7.4VDC | ||
| Operation Time | Distance and angle measurement: 8.5hours; Angle measurement 30 hours | ||
| Charging Tine | 2 hours | ||
