ComNav T300 GNSS GPS RECEIVER

China ComNav T300 GNSS GPS  RECEIVER supplier
ComNav T300 GNSS GPS  RECEIVER supplier ComNav T300 GNSS GPS  RECEIVER supplier ComNav T300 GNSS GPS  RECEIVER supplier ComNav T300 GNSS GPS  RECEIVER supplier

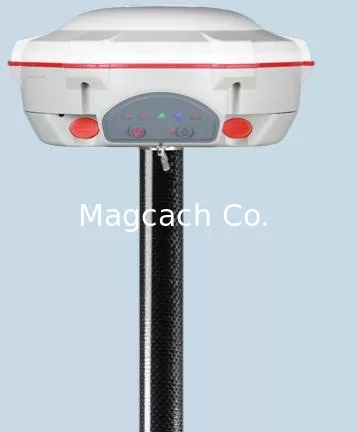

Large Image :  ComNav T300 GNSS GPS RECEIVER

Product Details:

Place of Origin: China
Brand Name: ComNav
Certification: CE
Model Number: T300

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Detailed Product Description

ComNav T300 GNSS GPS RECEIVER





SinoGNSS T300 GNSS receiver is a compact RTK GNSS receiver tracking all working constellations, combines 4G/TX & RX into one device, and work fluently with Android-based Survey Master software, for centimeter accuracy survey on demand.



ComNav T300 GNSS GPS  RECEIVER





Features

GPS L1/L2/L5, BeiDou B1/B2/B3,GLONASS L1/L2, Galileo E1/E5a/E5b
Compact Design
Hot Swap Battery
User-friendly Interface
Support Long Baseline E-RTK







Full-constellation tracking



The T300 tracks all working and planned GNSS constellations including GPS, GLONASS, BeiDou, Galileo and SBAS.



Built in 4G/TX & RX



Built-in GPRS/ GSM/4G modem ensures the T300 seamlessly work with all kinds of CORS, and 0 – 2 Watt internal UHF allows you more convenient and effective field work



Intuitive workflow



The T300 is able to provide easier survey workflow via Survey Master, improving productivity for both beginners and professional surveyors.







ComNav T300 GNSS GPS  RECEIVER







Specification

Performance
Signal tracking Channels: 572 channels
Satellite tracking: GPS, BeiDou, GLONASS, Galileo and SBAS
RTK Horizontal accuracy: 8 mm + 1 ppm
RTK Vertical accuracy: 15 mm + 1 ppm
Post Processing Horizontal accuracy: 2.5 mm + 1 ppm
Post Processing Vertical accuracy: 5 mm + 1 ppm
Initialization time: less than 10 s

Physical
Size(W × H): Φ15.8 cm × 7.5 cm
Weight (incl. supplied two batteries): 0.95 kg (2.1 lb)
Operating temperature: -40 °C to + 65 °C (40 °F to 149 °F)
Shock: Designed to survive a 2 m drop onto concrete
Humidity: 100% non-condensing
Waterproof and dustproof:
IP67
Power consumption (3 constellations): 3.1 W
Memory: 8 GB

Communication
1 Serial port (7 pin Lemo): Baud rates up to 921,600 bps
Correction data I/O: RTCM 2.X, 3.X, CMR, CMR+
Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Modem: 4G, 3G, GSM
UHF modem (optional): Tx/Rx, 410-470 MHz
Bluetooth® : V4.0 protocol
