CHC RTK GPS Rtk GPS Chc X10 Rtk Gnss GPS

China CHC RTK GPS  Rtk GPS Chc X10 Rtk Gnss GPS supplier
CHC RTK GPS  Rtk GPS Chc X10 Rtk Gnss GPS supplier CHC RTK GPS  Rtk GPS Chc X10 Rtk Gnss GPS supplier CHC RTK GPS  Rtk GPS Chc X10 Rtk Gnss GPS supplier

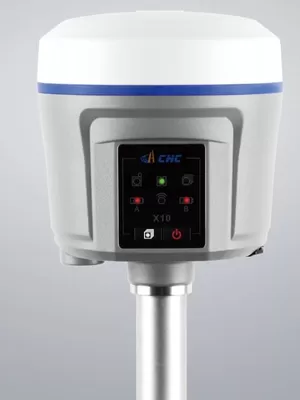

Large Image :  CHC RTK GPS Rtk GPS Chc X10 Rtk Gnss GPS

Product Details:

Place of Origin: China
Brand Name: CHC
Certification: CE
Model Number: X10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

CHC RTK GPS X10





CHC RTK GPS  Rtk GPS Chc X10 Rtk Gnss GPS





GNSS characteristics
220 channels with simultaneously tracked satellite signals
  GPS: L1C/A, L1C, L2C, L2E, L5
  GLONASS: L1C/A,L1P, L2C/A, L2P, L3
  SBAS: L1C/A, L5 (QZSS, WAAS, EGNOS, GAGAN)
  Galileo: E1, E5A, E5B
  BeiDou: B1, B2
GNSS Accuracies(1)
SBAS differential positioning accuracy: 0.5 m RMS
High-precision static Horizontal: 3.0 mm + 0.1 ppm RMS
  Vertical: 3.5 mm + 0.4 ppm RMS
Post-Processed Kinematic (PPK) Horizontal: 8 mm + 1 ppm RMS
  Vertical: 15 mm + 1 ppm RMS
RTK Horizontal: 8 mm + 1 ppm RMS
  Vertical: 15 mm + 1 ppm RMS
  Initialization time < 5 s
  Initialization reliability > 99.9%
Network RTK Horizontal: 8 mm + 0.5 ppm RMS
  Vertical: 15 mm + 0.5 ppm RMS
  Initialization time < 10 s
  Initialization reliability > 99.9%
Hardware
Dimensions (H×W) 14 cm × 12.4 cm (5.5 in x 4.9 in)
Weight 1.22 kg (2.69 lbs) with batteries
Environment
Operating -40 °C to +75 °C (-40°F to 167°F)
Storage -55 °C to +85°C (-67°F to 185°F)
Humidity 100% condensation
Dust and Waterproof IP68, protected from temporary immersion to depth of 1 m (unit floats)
Shock and vibration 3 m (9.8 ft) pole drop onto concrete, MIL-STD-810G
LCD 128x64dpi sunlight readable with function/accept buttons
Certification and Calibrations
FCC Part 15 (Class B Device), FCC Part 22, 24, 90; CE Mark; C-Tick; Bluetooth EPL, NGS Antenna Calibration, IGS Antenna Calibration, MIL-STD-810G.
Communications and Data Recording(2)
Serial 2 x 7pin LEMO port (external power, USB data download, USB update, RS-232)
External Power 12 to 36 VDC
USB v2 - mounts as high-speed USB thumb drive
Cellular Internally integrated 3.75G modem (optional 4G modem)
  HSPA+ 21 Mbps (download), 5.76 Mbps (upload)
  WCDMA 850/900/1700/1900/2100
  EDGE/GPRS/GSM 850/900/1800/1900
Bluetooth® Internally integrated multimode system compatible with Android, Windows Mobile, iOS and Windows desktop operating systems
WiFi 802.11 b/g/n, access point mode
UHF Radios (2) Protected TNC Female
Standard Internal Rx/Tx: 450 - 470 Mhz; transmit power: 0.1 W to 2 W, protocol CHC; range: 5 km optimal conditions
Option 2 FCC Certified Internal Rx/Tx: 403- 473 MHz; transmit power: 0.1 W to 1 W, protocols Trimble, Satel, Pacific Crest; range: 5 km optimal conditions
Protocols CMR: CMR+, sCMRx input and output
  RTCM: 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output
  NMEA 0183 output
  HCN and RINEX static formats
  NTRIP
Data Storage 32 GB high-speed memory
Electrical
Power consumption <3.2 W

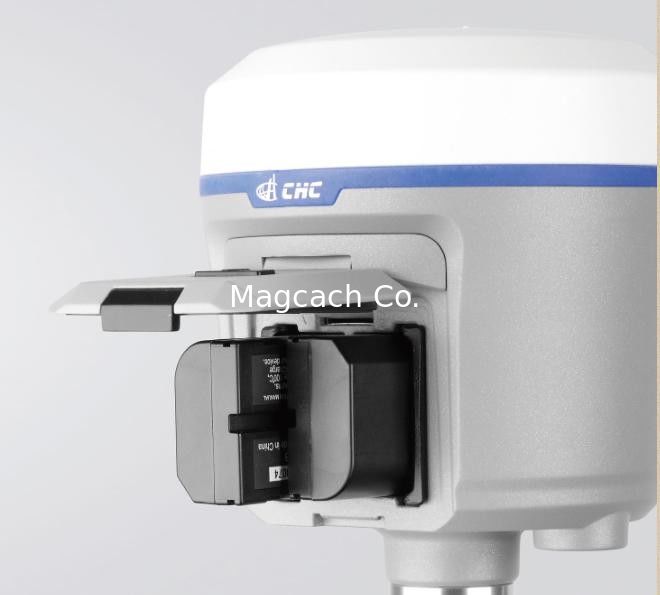

Li-ion battery capacity 3400 mAh*2, 7.4 V
Operating time Setup of multiple data stream
External power 12 to 36 V DC
