Sokkia SDL50 32X Digital Auto Level

Certification
Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

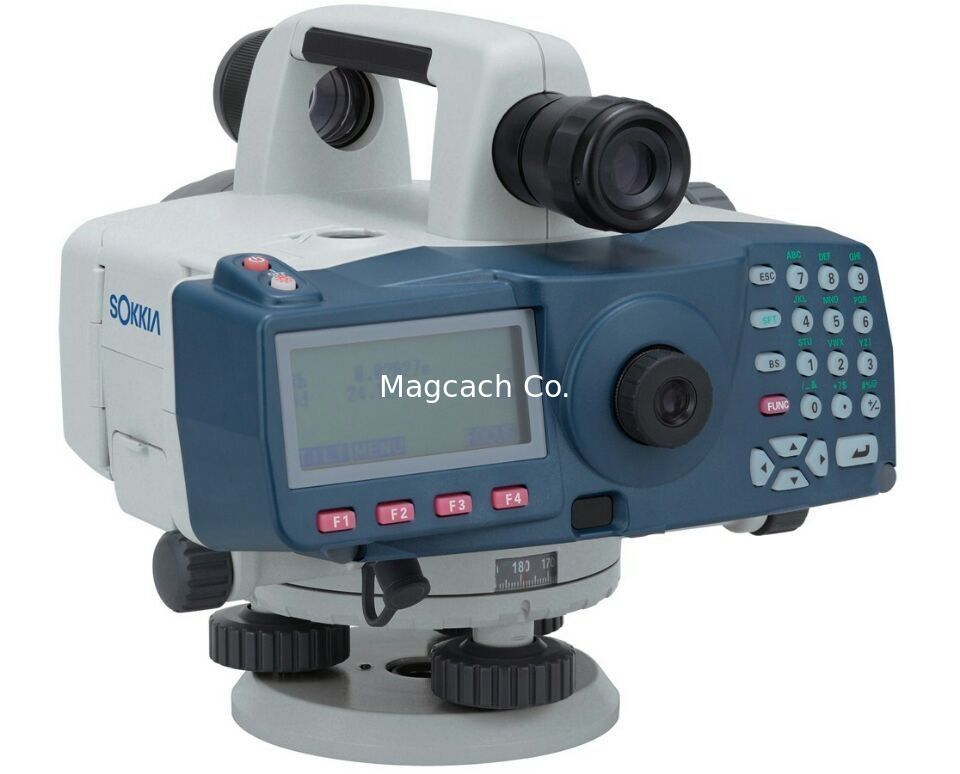

Sokkia SDL50 32X Digital Auto Level

China Sokkia SDL50 32X Digital Auto Level supplier
Sokkia SDL50 32X Digital Auto Level supplier Sokkia SDL50 32X Digital Auto Level supplier

Large Image :  Sokkia SDL50 32X Digital Auto Level

Product Details:

Place of Origin: China
Brand Name: Sokkia
Certification: CE
Model Number: SDL50

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Packaging Details: 1 pc auto level in one color box and 4 pc auto level in one carton
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 per pc
Contact Now
Detailed Product Description

Sokkia SDL50  Digital Auto Level



Sokkia SDL50 32X Digital Auto Level

Specifications

Sokkia SDL50
1.Automatic Reading
2.High Accuracy
3.Fast Computation
4.High Efficiency and Auto Save

Sokkia SDL50 Digital Levels

Height accuracy of 1.5mm can be achieved using fiberglass RAB-Code staves (Standard deviation for 1km double-run leveling).

The SDL50 is equipped with the same compensator as the SDL50, assuring a reliable, wide compensating range ±15'.

The SDL50 incorporates the convenient programs to help speed up construction work.

The internal memory holds 2,000 points of data in a maximum of 20 job files.

Measured data can be exported in CSV format using the software "SDL TOOL

Height accuracy of 1.0mm can be achieved using fiberglass RAB Code staves. With the top-of-the-line invar RAB-Code staves, 0.6mm accuracy is a reality (Standard deviation for 1km double-run leveling).



The SDL50 employs a market proven pendulum compensator with magnetic damping system. Its working range is ±15'.



The SDL50 calculates height difference, elevation, setting-out and more. When measuring height of the ceilings, bridges and other objects, there is no need to change the measuring mode when the staff is held upside-down.



The internal memory holds 2,000 points of data in a maximum of 20 job files.



Measured data can be exported in CSV format using the software "SDL TOOL".

Sokkia proudly presents the POWERLEVEL SDL50, a digital level that has been further improved by adding a large internal memory. All you have to do to measure height and distance is aim the unique RAB-Code staff, adjust the focus and press a single key. The results are immediately indicated digitally on the LCD display and can be recorded in the internal memory - making the SDL50 the ideal instrument for quick and easy leveling.

Digital makes measurement quick and easy
"How can we make leveling work quicker and easier?" was the question foremost in the minds of the SDL50 designers. Sokkia boldly eliminated the complex functions that complicate operation, resulting in an extremely simple and efficient digital level designed primarily for height and distance measurement - the essential role of the "Level". Measurements are made within three seconds with a single touch of a key, and can be stored immediately in the internal memory.

Suited to various environments
The SDL50 can be used in a wide variety of differing environments. It can be used in low light conditions as long a the cross hair is visible, as well as in very bright direct sunshine. Artificial lighting presents no problems, so you can survey indoors or in tunnels. Even in the dark measurement can be carried out using a small flashlight. The SDL50 has been designed to provide stable accuracy under these conditions and in adverse operating environments such as uneven light and shade, heat shimmer, and vibration.

Advanced power system
The SDL50 is powered by a new Lithium-ion-battery which is capable of supplying power continuously for seven hours. Long battery life is assured even with frequent recharging.

Four measurement modes
Four measurement modes are available: Single-Fine, Repeat-Fine, Average and Tracking.

Water and shock resistant structure
The SDL50 boast water-resistance unmatched by other digital levels. Complying with IPX4 (IEC60529), the SDL50 is protected from water splash from any direction. Sokkia's proven shock-resistant pendulum compensator with magnetic damping system ensures accuracy and durability.

Data storage
To further enhance the leveling work, an internal memory with a recording capacity of up to 2000 points of data has been added to the SDL50. This also enables you to create up to 20 JOB Files. Either automatically or by using the keys on the instrument, you can define point numbers and select attributes of recorded data and check them while doing or after finishing the job.
