HT-550 high strength test hammer concrete tester

China HT-550 high strength test hammer  concrete tester supplier
HT-550 high strength test hammer  concrete tester supplier HT-550 high strength test hammer  concrete tester supplier

Large Image :  HT-550 high strength test hammer concrete tester

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: HT-550

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: usd420-usd450per pc
Packaging Details: With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: HT-550 High Strength Test Hammer Test Range: 60-90Mpa
Standard Impact Energy: 100mm Stiffness Of Tension Spring: 83±2
Size: Φ54×350mm

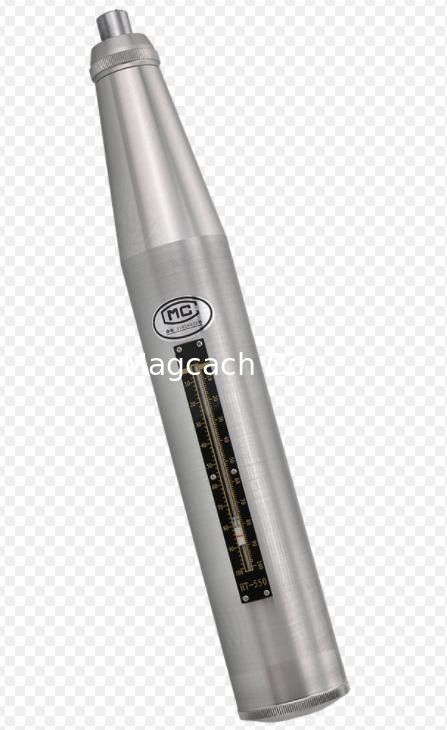

HT-550 high strength test hammer



HT-550 high strength test hammer  concrete tester



Brief introduction

Submit to JGJ/T23-2011 technology regulation. The instrument is suitable for testing strength of tall building structure, bridge and concrete component etc

Features:

1.Center rod use imported material, high precision and wear proof

2.Shell use super hard aluminums, protect instrument from damage on site work and prolong use life

3. Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price.



Specification

Test range 60-90Mpa
Standard impact energy 5.5J
Rebound spring impact length

100mm

Stiffness of tension spring 1100N/m
Average rebound value on steel anvil 83±2
Sphere radius of rebound pole SR 18mm
Weight 1.28kg
Size Φ54×350mm
