Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument

Certification
Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument

China Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument supplier
Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument supplier Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument supplier Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument supplier

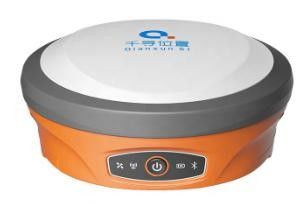

Large Image :  Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument

Product Details:

Place of Origin: China
Brand Name: Qianxun
Certification: CE
Model Number: SR3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Packing Way
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 per year
Contact Now
Detailed Product Description

Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument



Low price China brand GNSS receiver Qianxun SR3 RKT surveying instrument

•Multi-constellation satellite tracked

GPS,GLONASS,BDS,GALILEO,SBAS,QZSS



•Built-in radio supports more protocols

Transmit power 1W, effective working distance is 5km in the optimal work environment.



•Built-in 4G network module

More stable network communication.





•Intelligent dual batteries

Support up to 10 hours of work time, battery power can be read directly from the indicator light on the battery, the battery models of handheld device and host are same.



•Web UI

Access the Web page, complete the receiver configuration, download data, upgrade firmware, view status, etc. through the mobile phone, tablet and other handheld devices.



•Tilt survey

The RS3 receiver integrates an electronic bubble sensor, combined with a new tilt survey algorithm and surpad software operation. No calibration is required before measurement, the accuracy of coordinate data can be easily achieved within 30° tilt angle.





Static Accuracy
Horizon: 2.5mm+1ppmRMS
Vertical: 5mm+1ppmRMS
RTK Accuracy
Horizon: 8mm+1ppmRMS
Vertical: 15mm+1ppmRMS
SBAS Accuracy
Horizon: 0.6mRMS Horizon: 0.3mRMS Horizon: 0.5mRMS
Code Differential Accuracy
Horizon: 0.4mRMS Horizon: 0.25mRMS Horizon: 0.25mRMS
Update rate
Up to 100HZ Upto50Hz Upto50Hz
Power Supply
Battery Dual rechargeble batteries,7.20V/3400mh*2
Working time Upto10hours
Input 9-28VDC, withover-voltage protection
Data Interface
TNC For UHF Anternal power
5-pin External radio and external power
7-pin Connect to PC controller and other-external device,such as Echo Sounder
Others SIM slot and TF slot
Indicator 4 indicators,Satellites,Datalink,Bluetooth,WIFI Status.
