Magcach Total Station MAT732R5 Reflectorless Distance 500m

Certification
Good quality UAV / Drone for sales
Good quality UAV / Drone for sales
I'm Online Chat Now

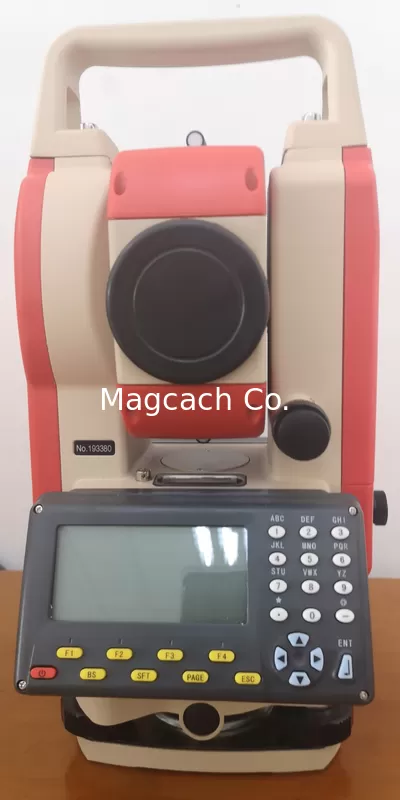

Magcach Total Station MAT732R5 Reflectorless Distance 500m

China Magcach Total Station MAT732R5 Reflectorless Distance 500m supplier
Magcach Total Station MAT732R5 Reflectorless Distance 500m supplier Magcach Total Station MAT732R5 Reflectorless Distance 500m supplier Magcach Total Station MAT732R5 Reflectorless Distance 500m supplier

Large Image :  Magcach Total Station MAT732R5 Reflectorless Distance 500m

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: MAT732R5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: With Standard Export Shipping Way
Delivery Time: 1-2 weeks after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 per year
Contact Now
Detailed Product Description
None Prism Distance: 500m Accuracy: 2"

MAGCACH Total Station MAT732R5 Reflectorless Distance 500M Total Station

Magcach Total Station MAT732R5 Reflectorless Distance 500m



MAT700 SEIRS TOTAL STATION

1. Operating with one key ,easy for operation .

2. Absolutely Code , 2” accuracy ,reflectorless Distance is 500m

3. Large capacity battery , 10 hours of working time .

4. Several way for measurements ,meet various measuring Demands .

5. 50000 points internal Memory ,23 storage folder .

6. USB port for communication : up and down load the data .

7. The operating software is similar as the Sokkia Total Station







MODEL MAT732R5
Telescope
Tube Length 156mm
Objective Lens Diameter Telescope :45mm;EDM:50mm
Image Erect
Magnification 30X
Effective Aperture 45mm
Resolving Power 3.5"
Field Of View 1°30'
Minimum Focus 1.3m
Distance Measurement(under Fair Weather Condition)
PRISMLESS Distance 500 m
Accuracy 5mm+3ppmxD
Range 1P 3000m
3P 5000m
Accuracy 2mm+2ppmxD
Minimum Count 1mm
Distance Unit M
Measuring Time
Fine 0.9sec.(first time2.5sec.)
Tracking 0.4 Sec.
Maximum display 999999.999m
Atmospheric Correction T-P Sensor, Auto Detect and Correct
Prism Constant Manual Input ,Auto Correction
Temperature 15 C
Atmospheric Pressure 1013hPa/mmH/inHg
Atmospheric Deflection & 0
Earth Curvature Correction k=0.14/0.20/0
Prism Constant 0 mm /-30 mm
Angle Measurement
Measurement Method Absolute Encoding
Detection Method
Horizontal Dual
Vertical Dual
Accuracy 2"
Minimum Readout 1"/5”
Diameter Of Circle 79mm
Unit 360°/400GON
Sensitivity of Vials
Plate Vial 30"/2mm
Circular Vial 8'/2mm
Compensation Dual Axis Compensation
Type Liquid-electric detection/Plate level
Compensation Range +/-3'
Resolution 1"
Optical Plummet
Image Erect
Magnification 3X
Focus Rang 0.5m-infinity
Data Port USB
Display Size 135*70mm ;LCD:80mm*35mm
Display No. 2 Sides Display
Keyboard Alphanumeric
Laser Plummet
Laser Wave Length 635nm
Laser Power 5mW
Laser Class Class II
Temperature Range
Storage -50°C~ + 60°C
Working -40°C~ + 55°C
Battery Rechargeable Ni-MH Battery
Battery Voltage DC 7.2V
Battery Capacity 3000 mAh
Working Time 10 Hours
Waterproof IP54
