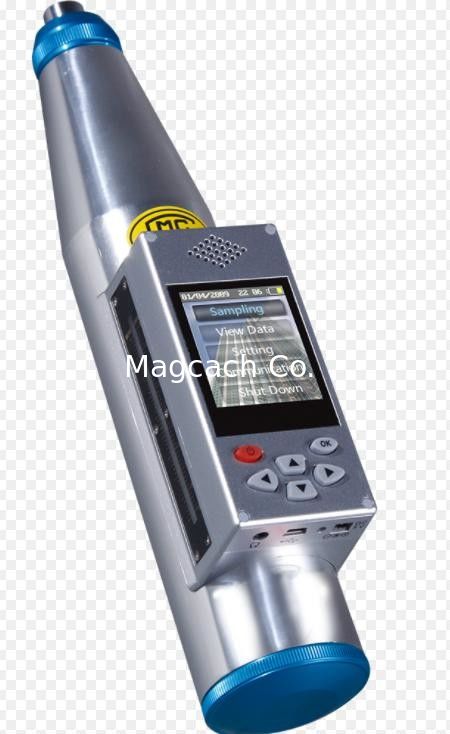

HT225-V Digital Voice Test Hammer

China HT225-V Digital Voice Test Hammer supplier
HT225-V Digital Voice Test Hammer supplier HT225-V Digital Voice Test Hammer supplier

Large Image :  HT225-V Digital Voice Test Hammer

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: HT225-V

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: usd1200-usd1300 per pc
Packaging Details: With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: HT225-V Digital Voice Test Hammer Test Range: 10-60Mpa
Standard Impact Energy: 2.207J Rigidity Of Tension Spring: 785N/M
Stroke Of Rebound Hammer: 75mm Screen: 16bit True Color,176*220resolution,5 Classes Back Light Choose
Power Source: 3.6V/1300mAH Li Battery,charger Adapter 5V/2Aunder Largest Back Light And Shut Down The Voice, Last Work 13 Hours Weight: 1.1Kg
Connect Interface: USB2.0

HT225-V Digital Voice Test Hammer





HT225-V Digital Voice Test Hammer





Brief introduction:

Test hammer HT225-V submitted to GB/T9138-1988, JJG817-93 and JGJ/T23-2011 standards. The instrument is useful for quality Inspection Company, site testing or sampling and laboratory center, don’t have to manual calculation, machine automatically compute, grade and printing.



Traits:



1)The test hammer is combined with displayer part, easy to operate and make your work efficient.)

2) LCD color screen 176*220 (other manufacturers’ are black and white, low resolution))

3)Large capacity rechargeable lithium battery, economic and environment protection, long use life, better than other market product (one time use battery)

4)No-touch metal reflect grating and reflect compile sensor, better accuracy. (other manufacturer’s are ordinary transmission grating and optical coupler, or carbon film and brush touch sensor)

5)Born with voice service, color screen display and traditional scale, more accurate, in case power off when site work, we still can make use of the scale to continue work. Voice service can make your work efficient. (similar product of other manufacturers’ in market no voice service and scale)

6)USB interface, easy to connect with PC

7)The software can set rebound value from upper limit to lower limit, and the abnormal date will be deleted automatically.

8) Equipped with infrared portable printer, on site print test report.

9)Some important components are processed from imported materials, after our excellent processing, the instrument get longer use life, better than other similar products



Parameters



Test range 10-60Mpa
Standard impact energy 2.207J
Rigidity of tension spring 785N/M
stroke of rebound hammer 75mm
error range for digital displayer ≤±0.5(the difference between displayer and scale)
average rebound hammer on steel anvil Rm 80±2
Screen

16bit true color,176*220resolution,5 classes back light choose



Storage

255*100*16=408000 test points, customer can add up to 20 test curves



Power source 3.6V/1300mAH Li battery,charger adapter 5V/2Aunder largest back light and shut down the voice, last work 13 hours
Power consumption largest back light≈100mA(voice shut down)
Connect interface USB2.0
Weight 1.1Kg
