HT-225 Concrete Test Hammer

China HT-225 Concrete Test Hammer supplier
HT-225 Concrete Test Hammer supplier HT-225 Concrete Test Hammer supplier HT-225 Concrete Test Hammer supplier

Large Image :  HT-225 Concrete Test Hammer

Product Details:

Place of Origin: China
Brand Name: Magcach
Certification: CE
Model Number: HT-225

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: usd110-usd130 per pc
Packaging Details: With Standard Export Shipping Way : There are 1pc into one case and then are packed into one Carton
Delivery Time: 3-5 work days after the goods are paid
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 200000 per year
Contact Now
Detailed Product Description
Name: Concrete Test Hammer Standard Impact Energy: 2.207J(0.225Kgf.m)
Stroke Of Rebound Hammer: 75mm Friction Of Pointer Slider: 0.5N~0.8N
Sphere Radius Of Rebound Pole SR: 25mm±1mm

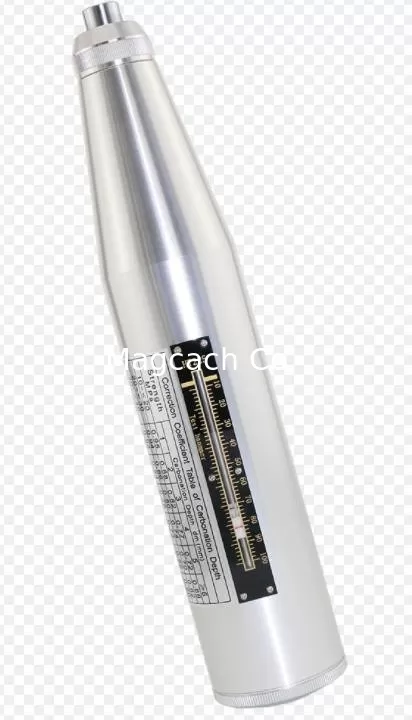

HT-225 Concrete Test Hammer



HT-225 Concrete Test Hammer

Brief introduction:

The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on.



Trait:

1)Center rod is made from imported material, high accuracy and durable resistance.

2)The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.

3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

HT-225 Concrete Test Hammer



Parameter



Test range Test range
Standard impact energy 2.207J(0.225Kgf.m)
Stroke of rebound hammer 75mm
Friction of pointer slider 0.5N~0.8N
Sphere radius of rebound pole SR 25mm±1mm
Average rebound value on steel anvil Rm 80±2
Size Φ54*278mm
Weight ≈1KG
